Profile Racing Hub Axles

 Axles for profile hubs. Please read the differences below and select the correct option for your hub!

*Cone spacers, studs, & bolts not included*

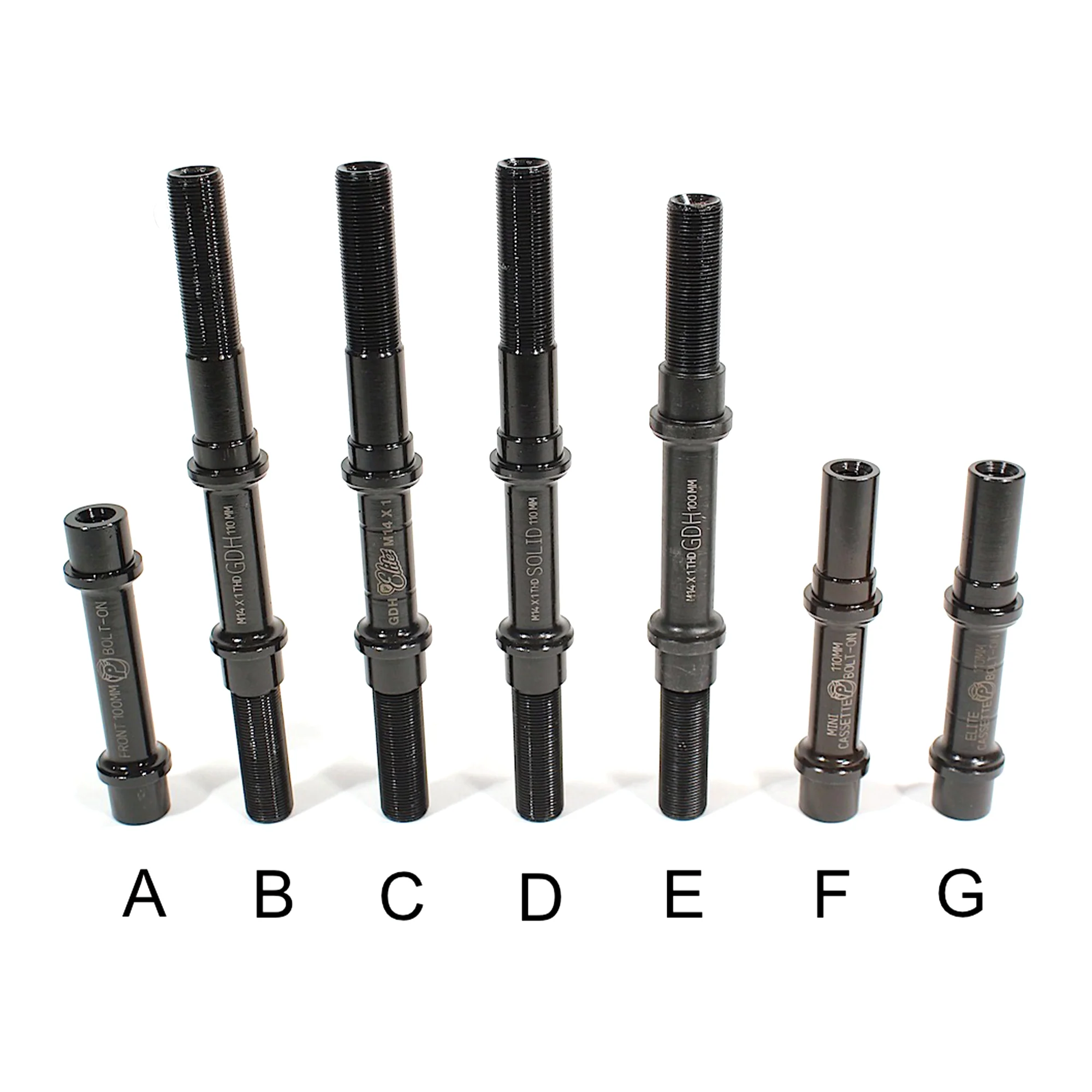

Chromoly axle types:

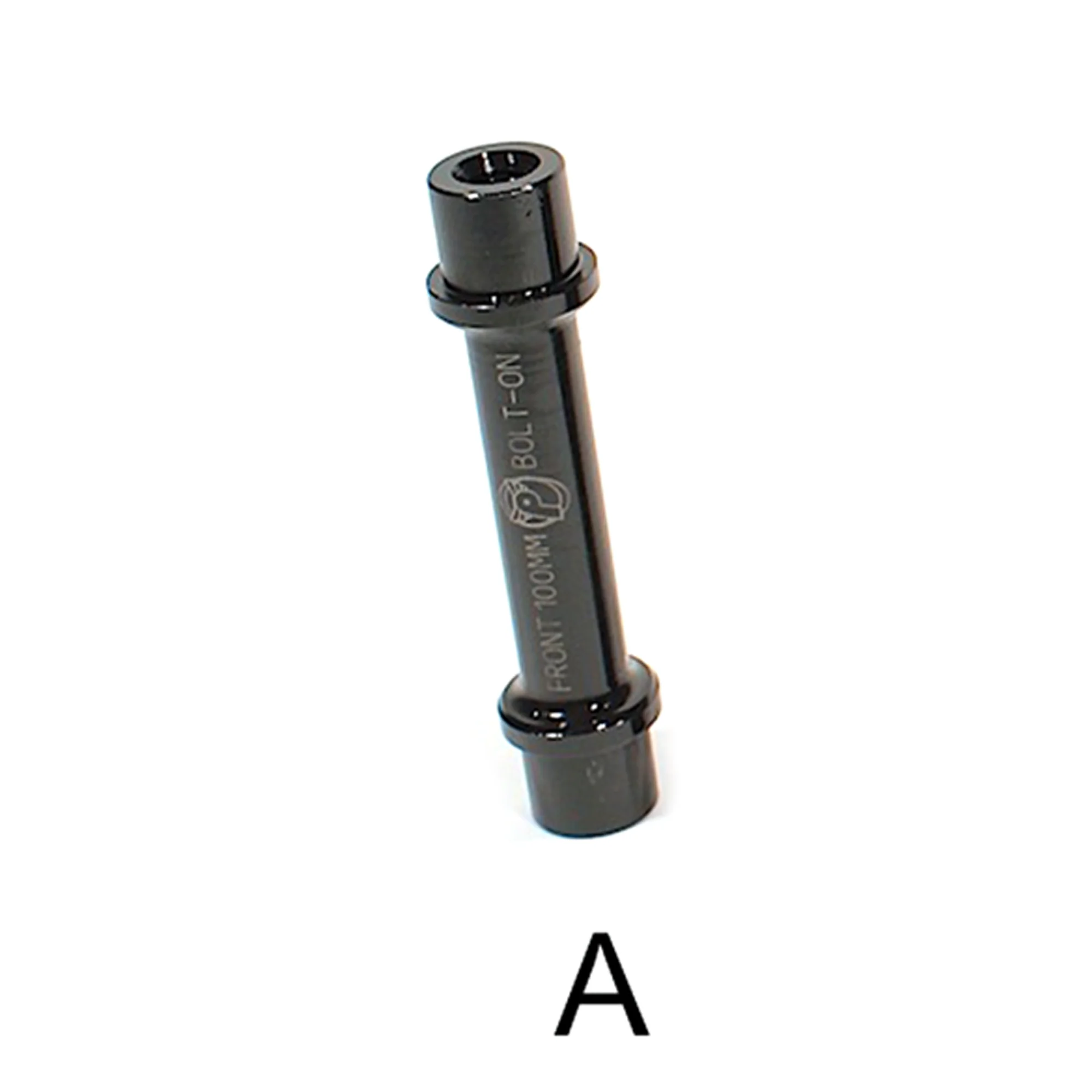

A. 3/8″ Threaded Mini/Elite Front Axle(fits Profile Mini, Elite, & Madera front hubs)

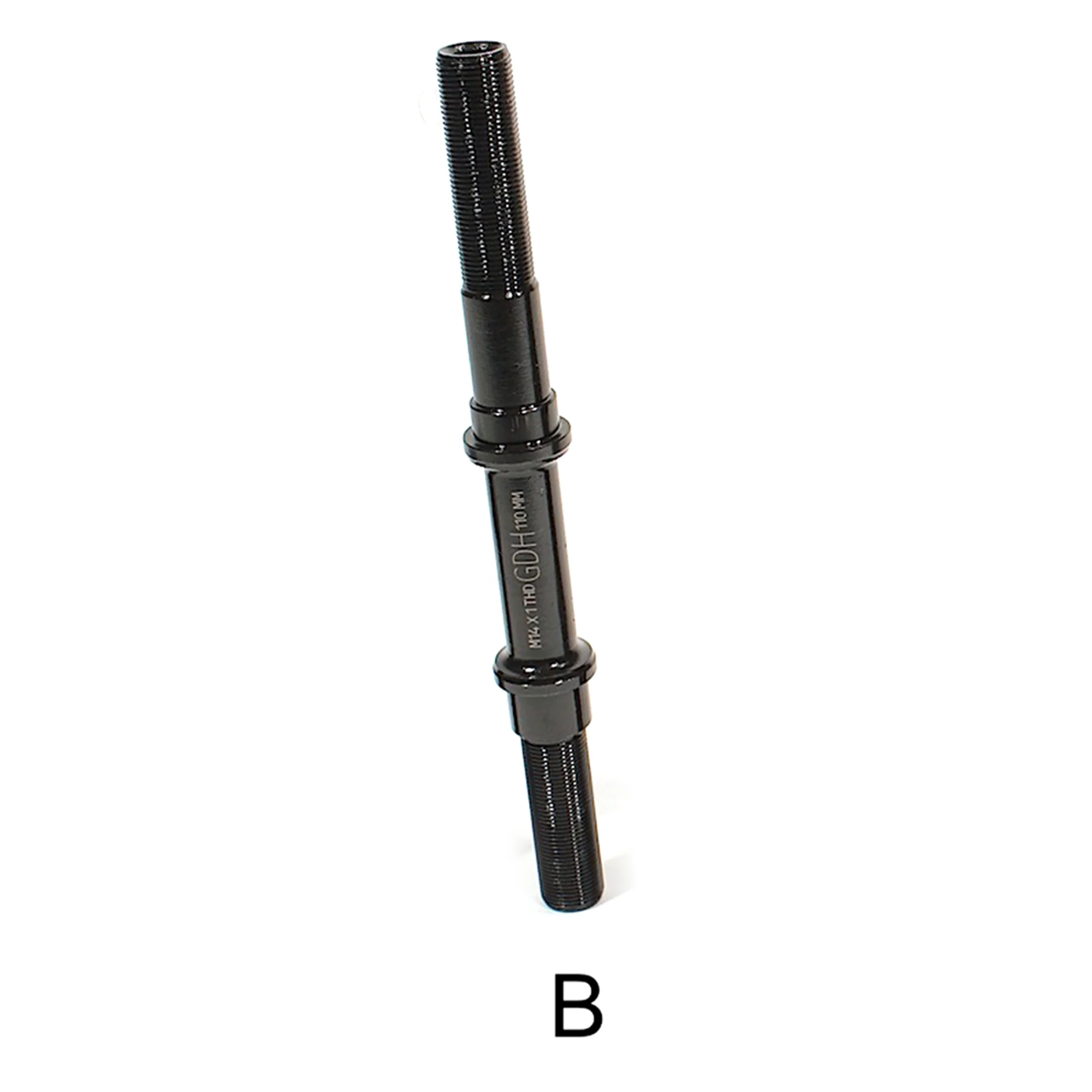

B. 14mm GDH Mini Cassette Axle(fits Profile Mini, Totem, High Flange, & Madera cassette hubs)

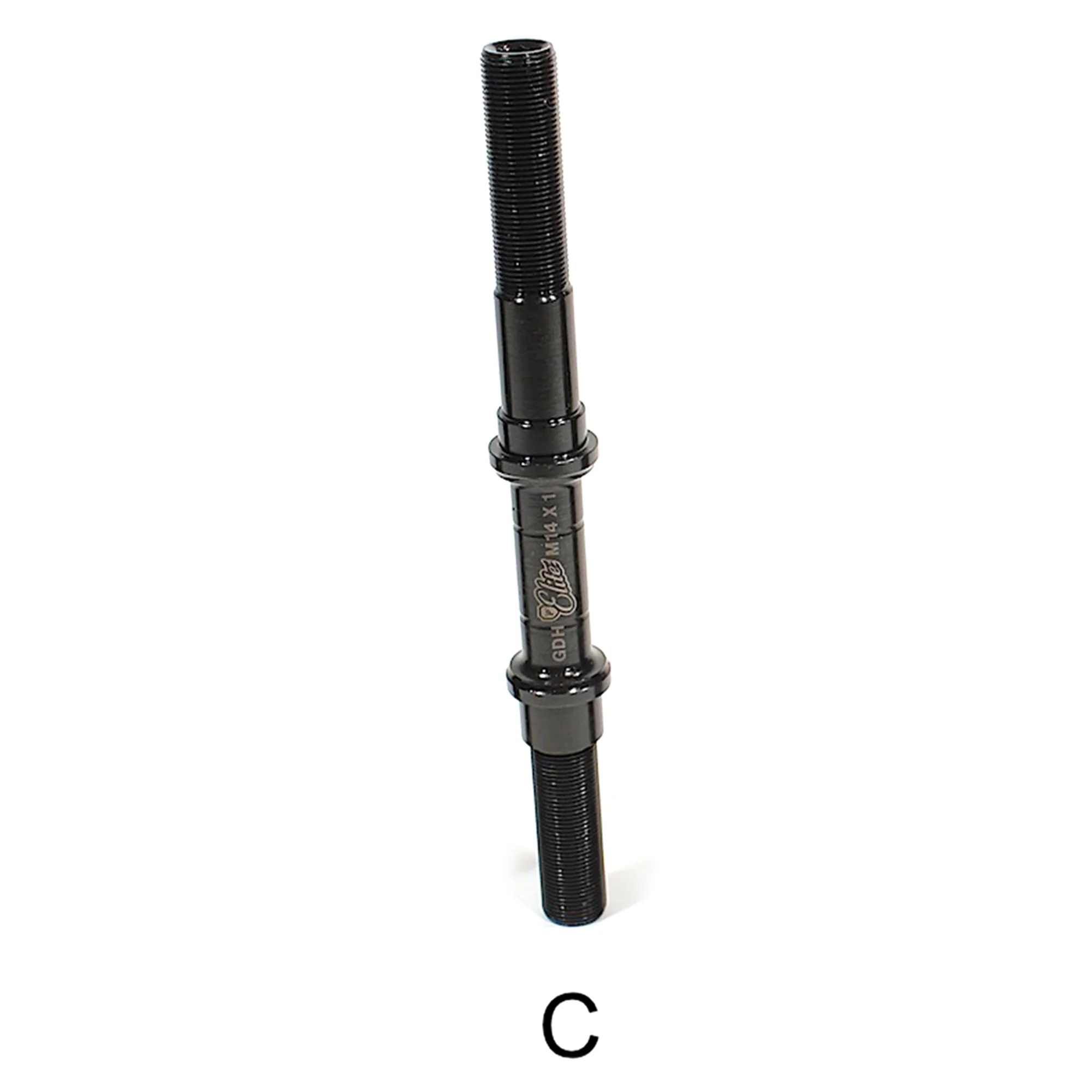

C. 14mm GDH Elite Cassette Axle(fits Profile Elite cassette hubs)

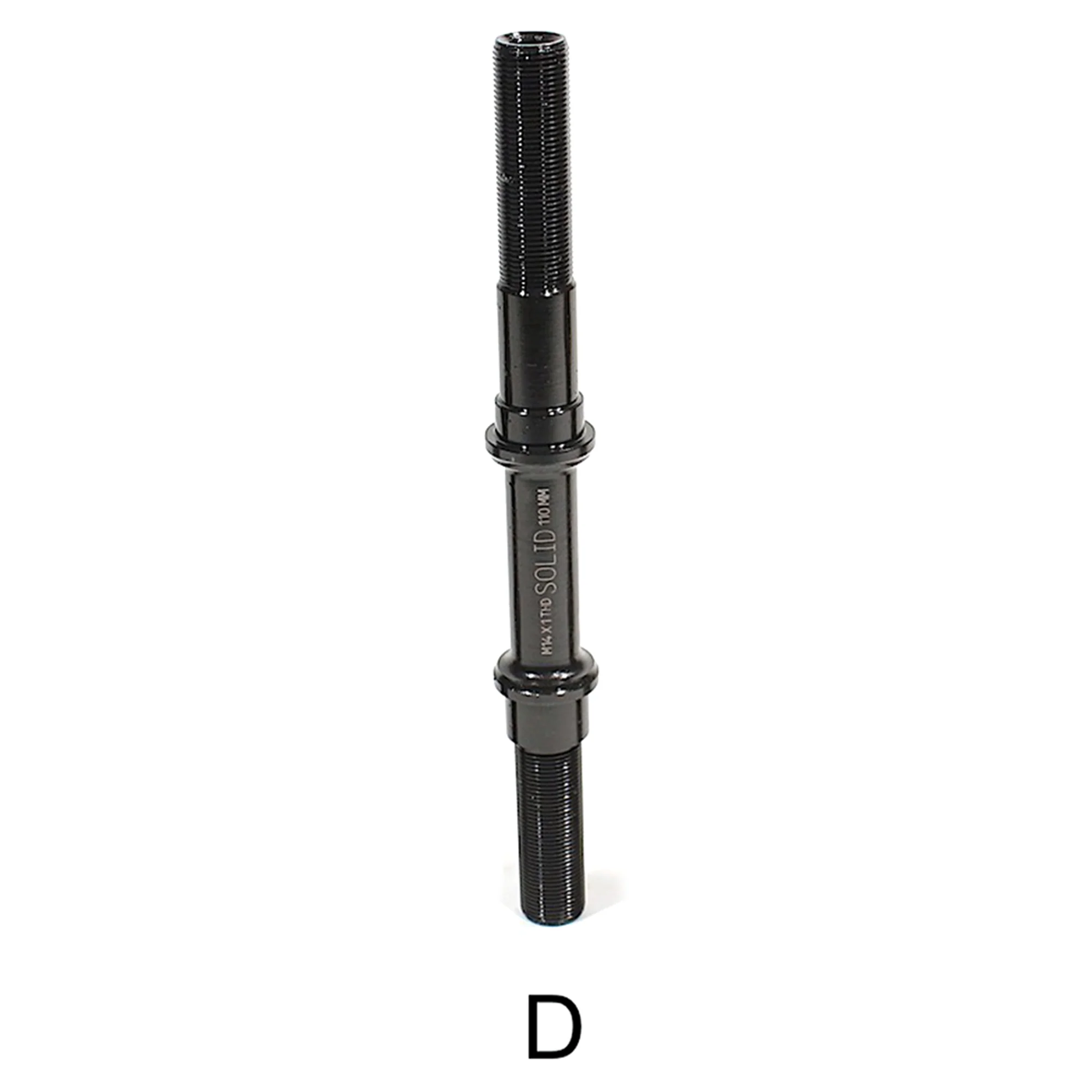

D. 14mm Solid Mini Cassette Axle(fits Profile Mini, Totem, High Flange, & Madera cassette hubs)

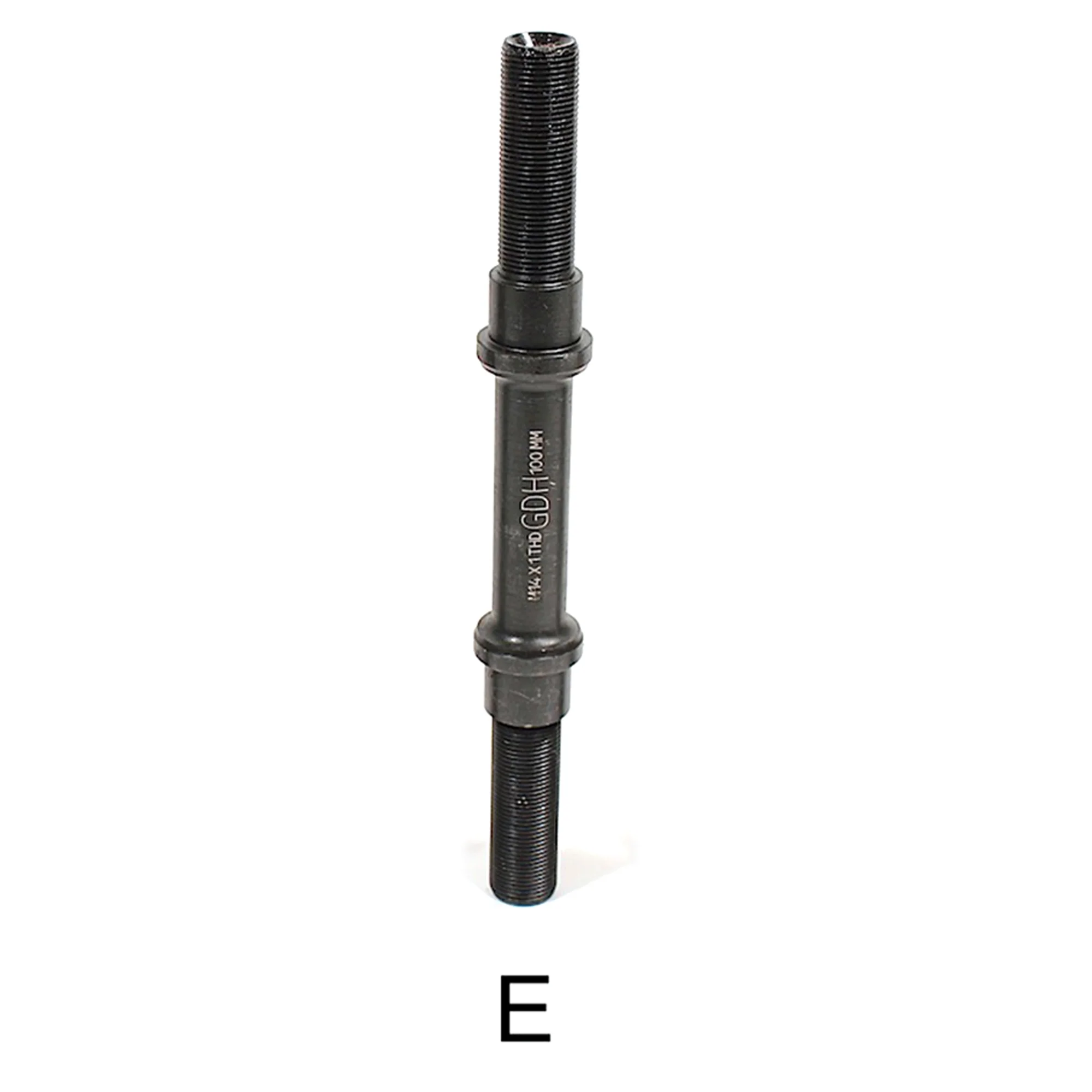

E. 14mm GDH Mini/Elite Front Axle(fits Profile Mini, Elite, & Madera front hubs)

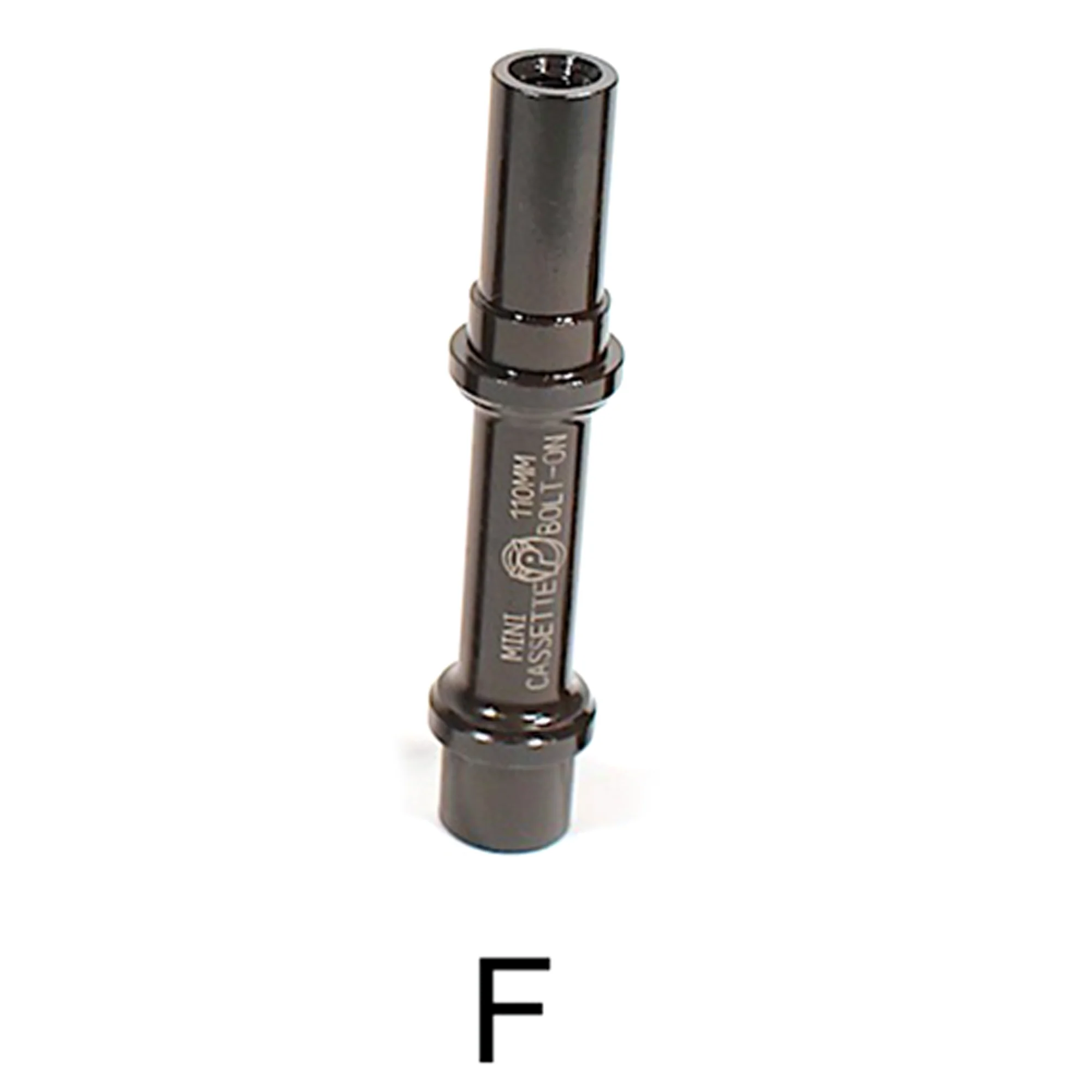

F. 3/8″ Threaded Mini Cassette Axle(fits Profile Mini, Totem, High Flange, & Madera cassette hubs)

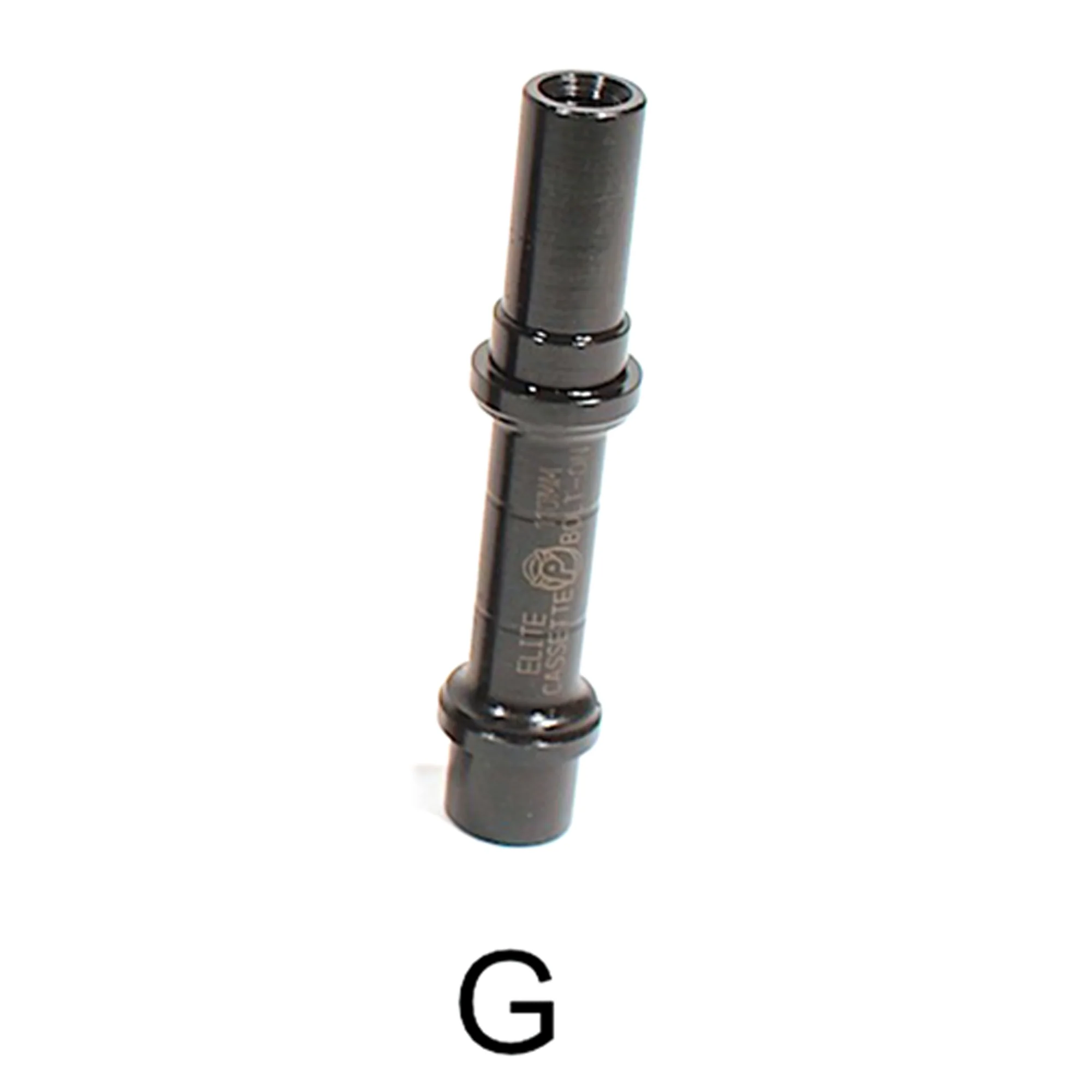

G. 3/8″ Threaded Elite Cassette Axle(fits Profile Elite cassette hubs only)

*14mm axles include cone spacers and two jam nuts*

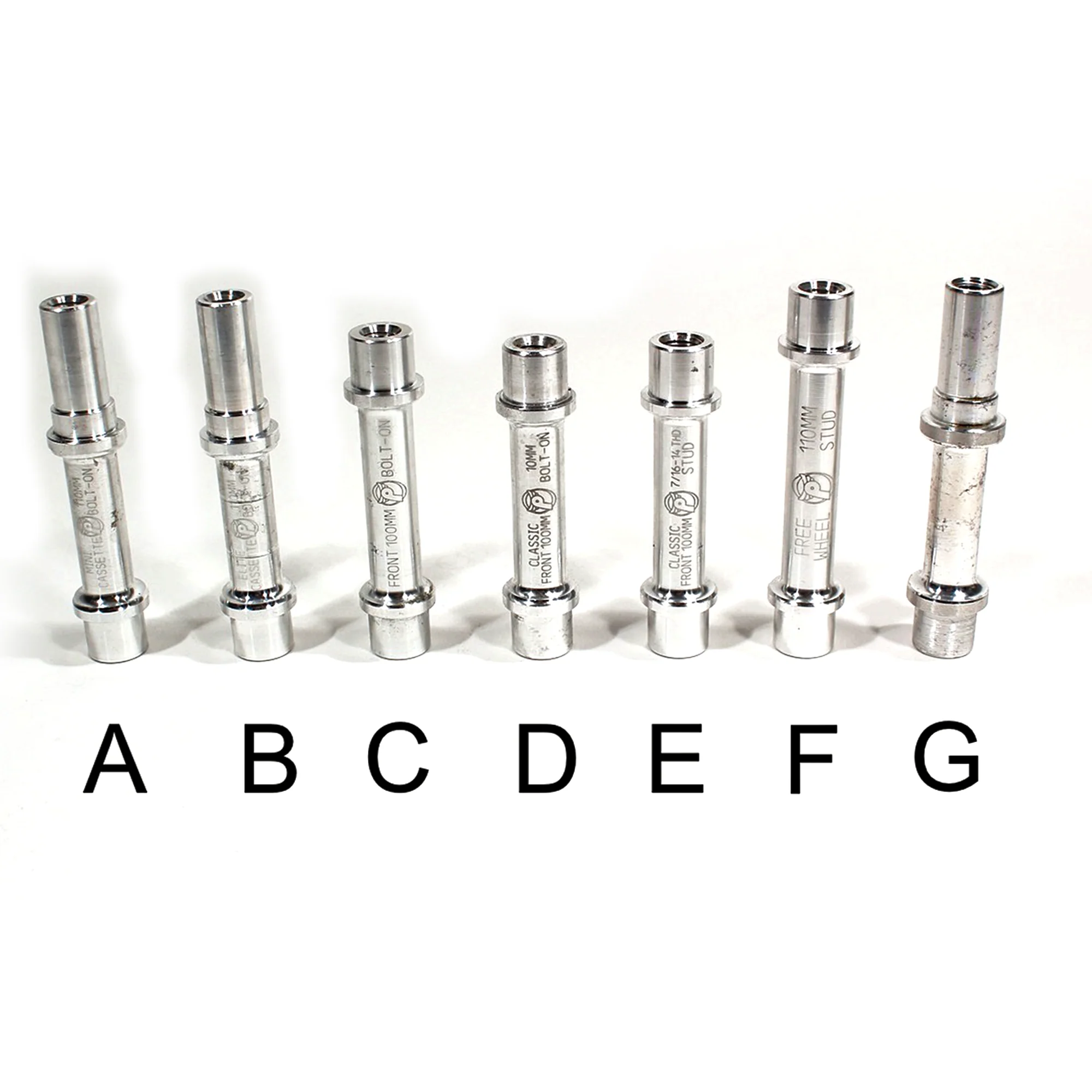

Aluminum axle types:

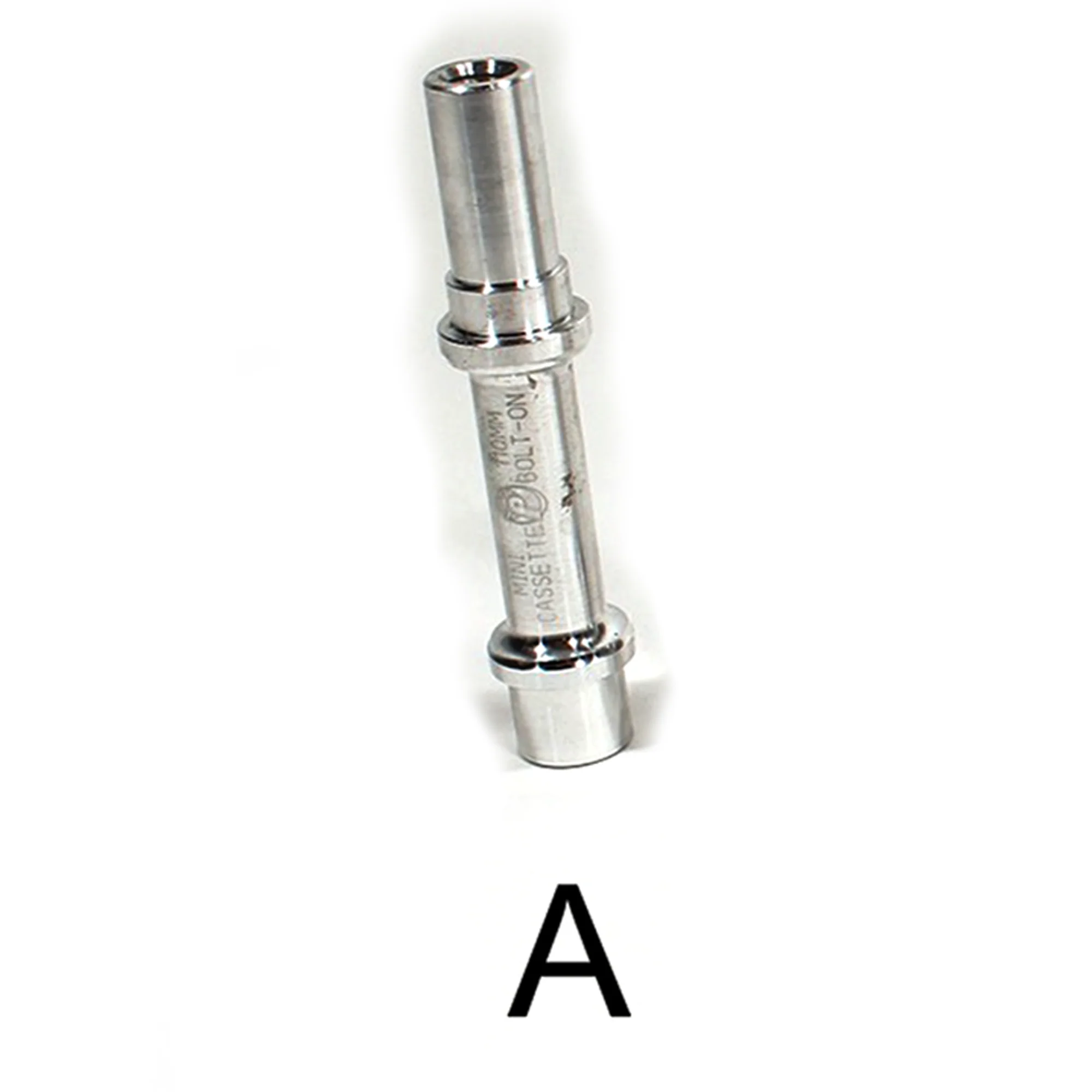

A. Mini Cassette 3/8″ Threaded Axle(fits Profile Mini, Totem, High Flange, & Madera cassette hubs)

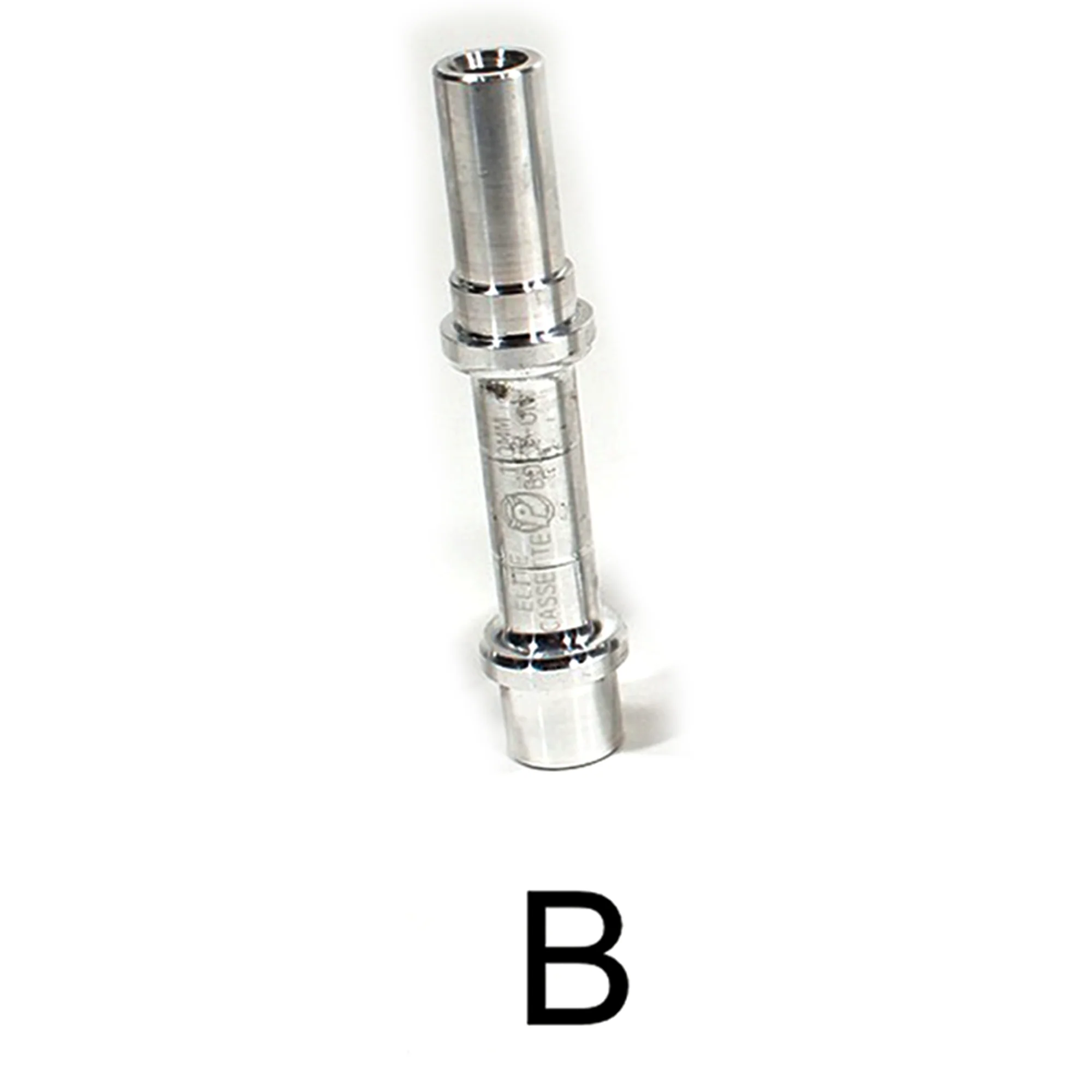

B. Elite Cassette 3/8″ Threaded Axle(fits Profile Elite cassette hubs)

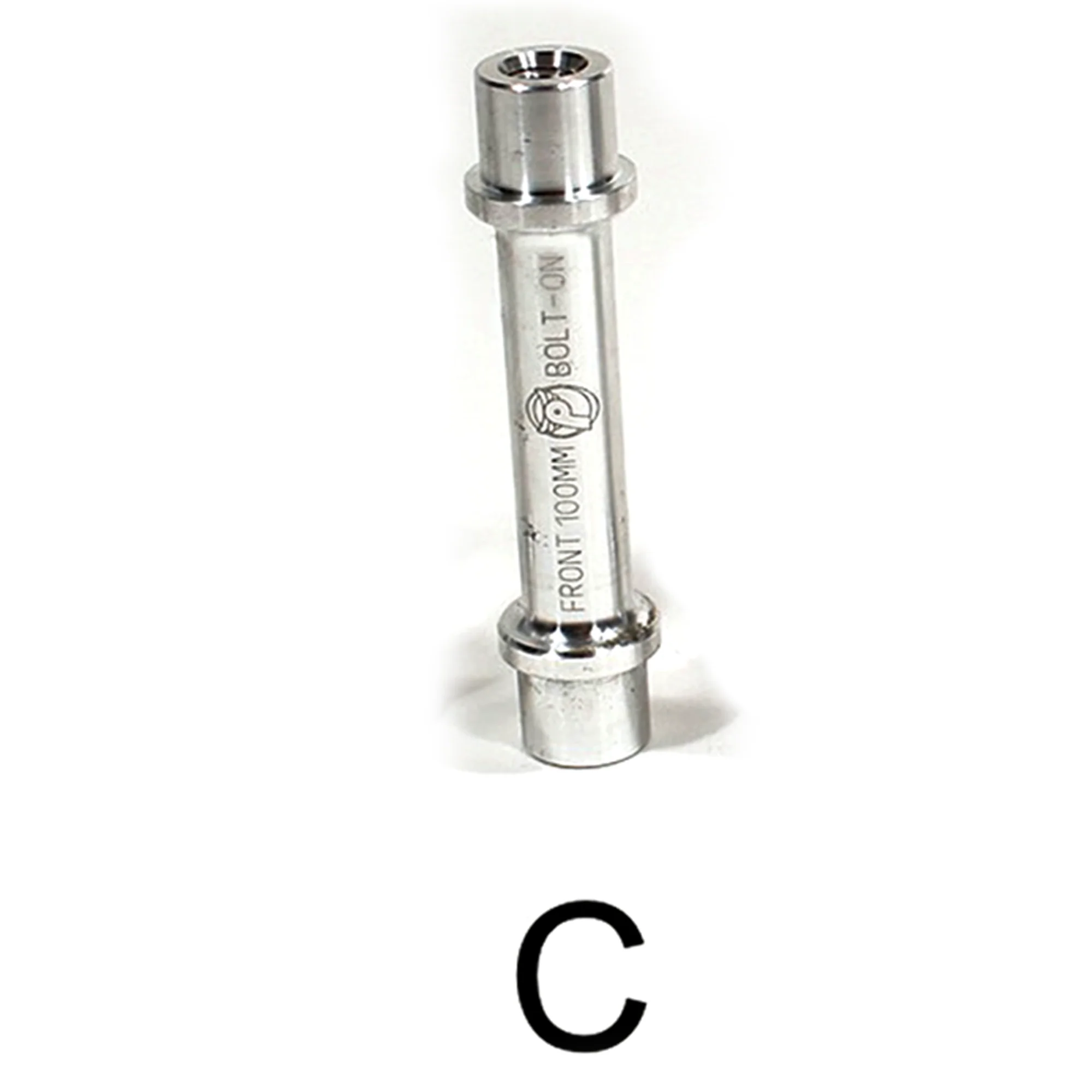

C. Mini/Elite Front 3/8″ Threaded Axle(fits Profile Mini, Totem, Elite, & Madera front hubs)

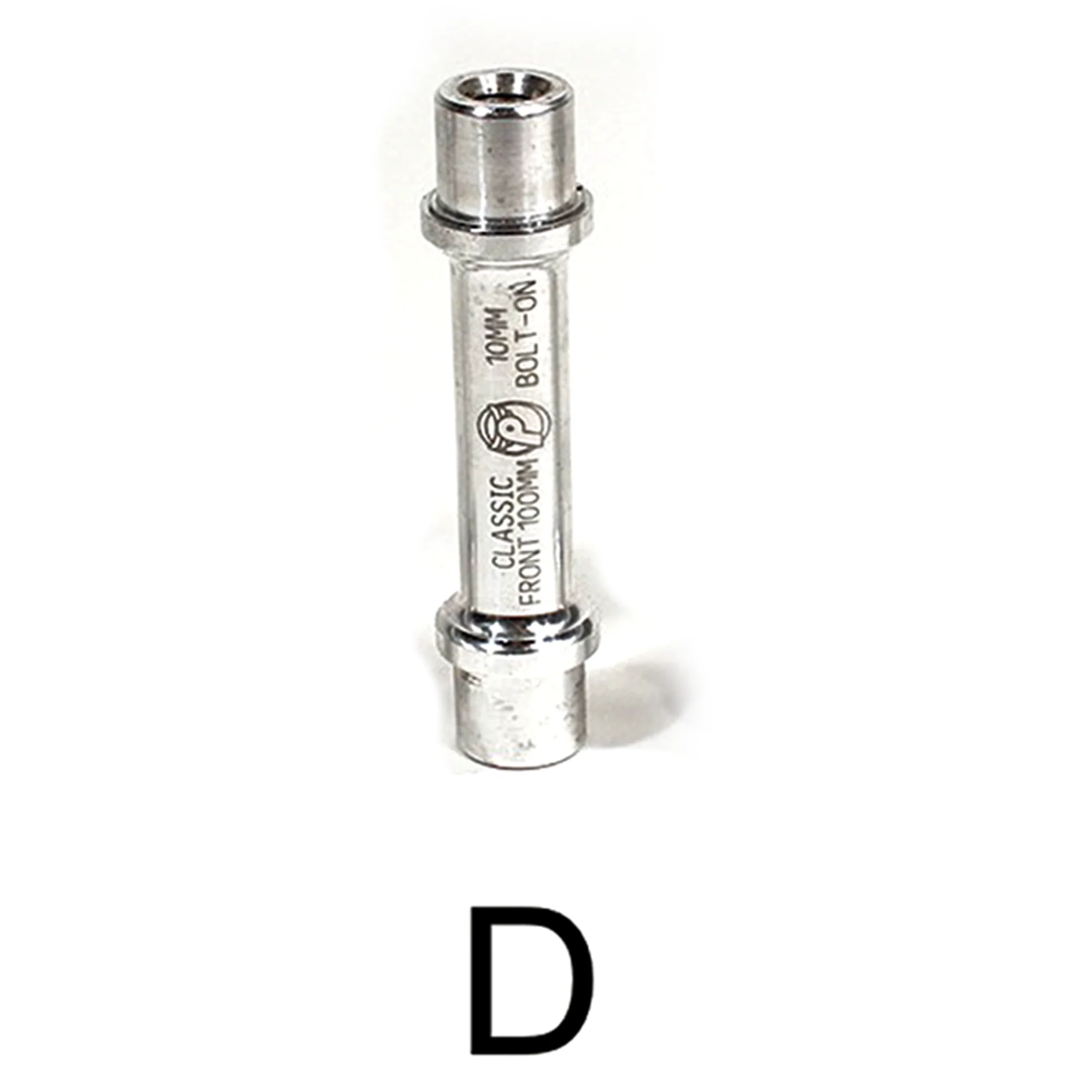

D. High Flange Front 3/8″ Threaded Axle(fits Profile High Flange front hubs)
E. High Flange Front “Stud” Axle(fits Profile High Flange front hubs-uses Axle Studs)
F. Freewheel “Stud” Axle(fits Profile High Flange Freewheel & Drive-Bi hubs)

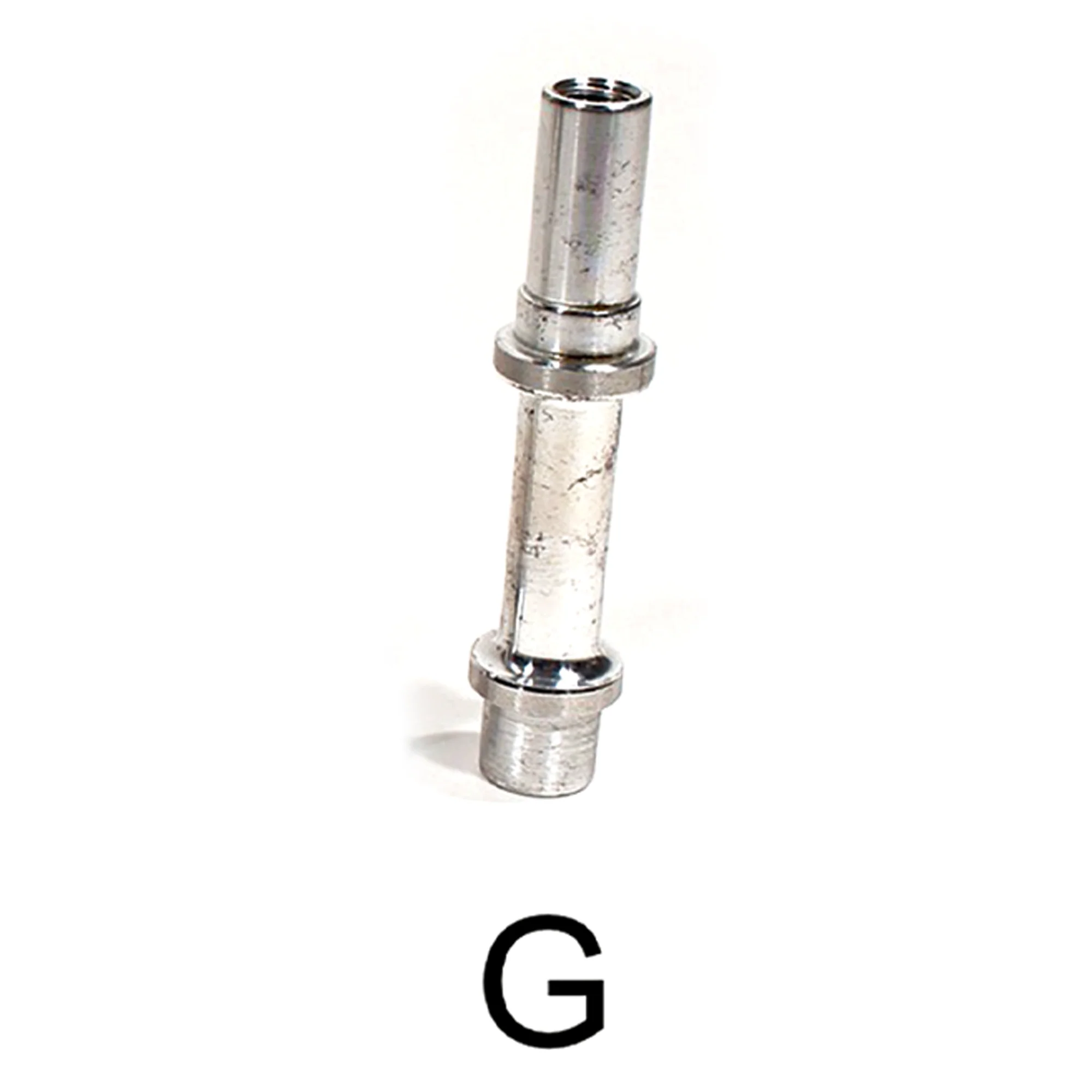

G. Mini Cassette “Stud” Axle(fits Profile Mini, Totem, High Flange, & Madera cassette hubs) (Includes drive side spacer)
H. Elite Bmx Disk 3/8 Threaded Axle
I. Nomad Rear Hub Axle (axle accepts 15mm bolts and 3/8 bolts with adapters)*

Titanium axle types:

A. 14mm rear Male GDH for Elite hubs.

B. 14mm rear Male GDH for Mini hubs.

*”Stud” style axles have 7/16-14 threads and require Profile chromoly studs*
