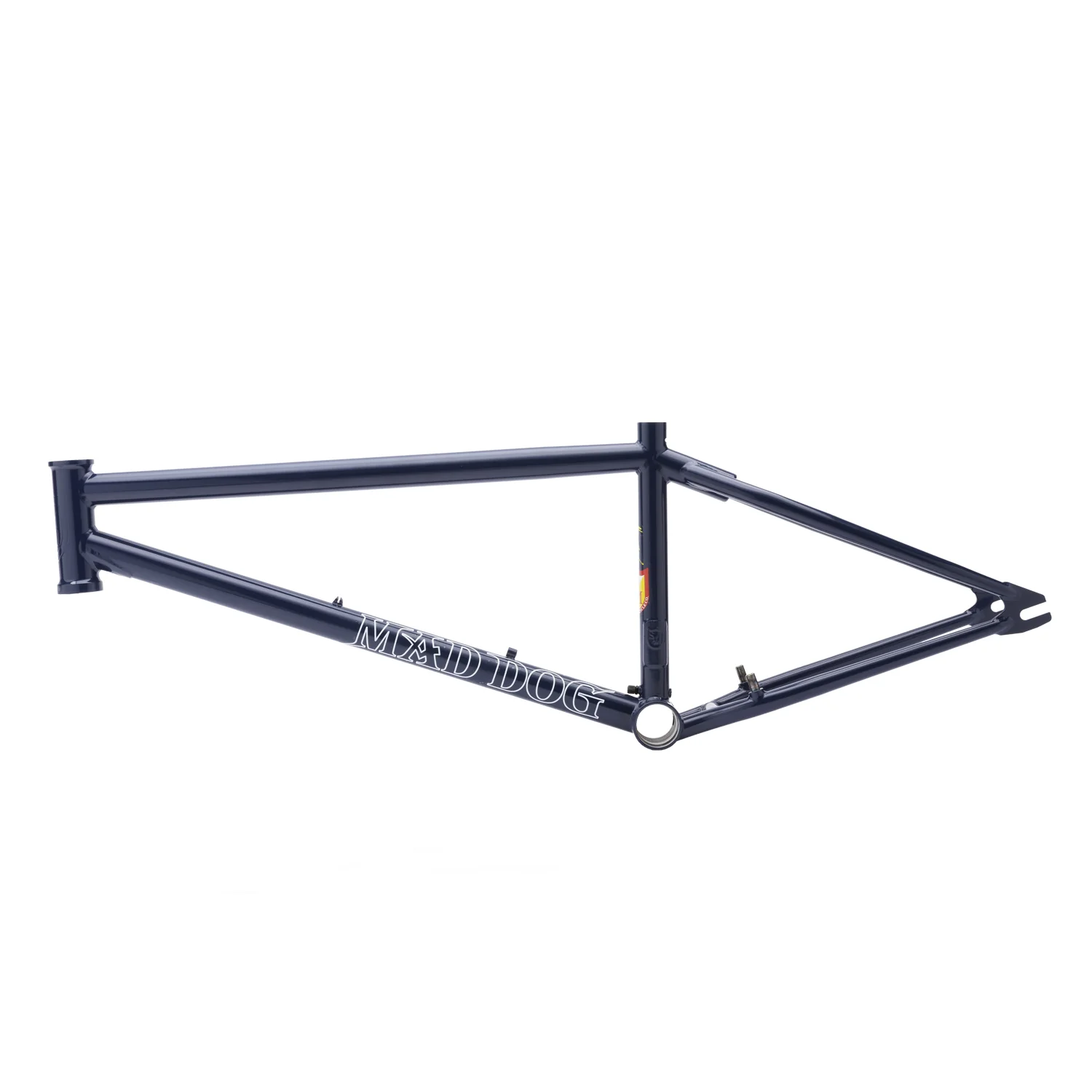

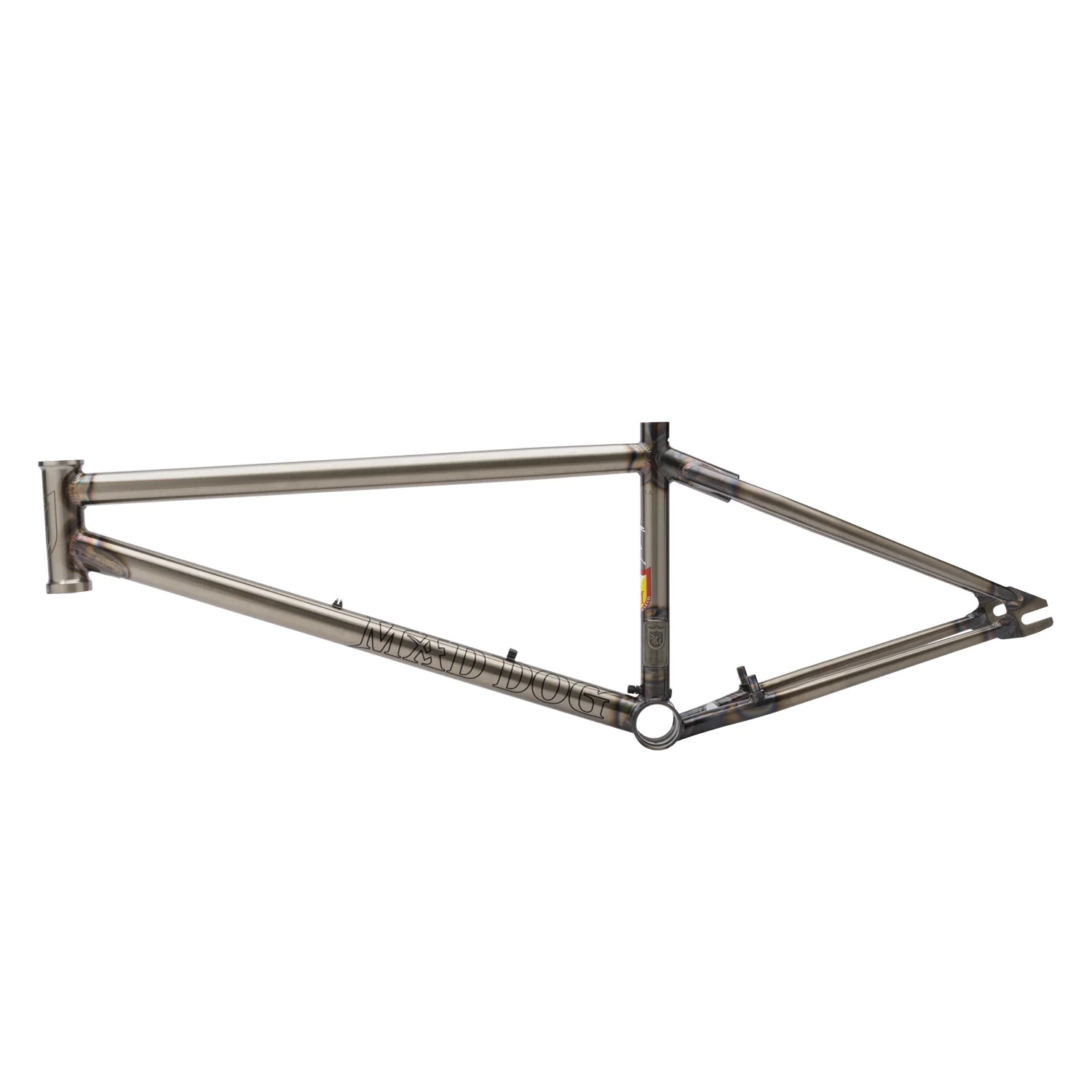

S&M MAD DOG 990 FRAME FOR 22″ WHEELS
Throw a dog a wishbone! And a disc brake, with a tall stand-over, but keep it light and you’ve got yourself the reincarnated Chris “Mad Dog” Moeller frame. It only took 36 years for S&M’s Top Dawg to drop another bike custom-crafted for his breed of biking, but much like the original, its designed for dudes who want to terrorize the trails and the track and claim their territory doing it – this time on 22″ wheels!
Engraved Shield on Headtube. Engraved ’87’ on BB shell. MAD DOG-tag on seat-tube.
Disk mount is designed for 120mm rotor with 0mm IS to POST mount adaptor (Profile hub or hub with similar narrow flange width recommended for spoke/caliper clearance) , 140mm rotor requires a 20mm IS to POST mount adaptor. Max sprocket size with proper chain alignment is 36 tooth. Seat tube is t-slotted for traditional 28.6mm seat clamp or Quick Release 28.6mm seat clamp. Rear drop-out spacing is traditional BMX 110mm.
| TOP TUBE LENGTHS | 21.75″, 22″, 22.25″, 22.5″ |
| REAR END LENGTH | 14.15″ |
| HEAD TUBE ANGLE | 74.25° |
| STANDOVER HEIGHT | 10″ |
| B.B. HEIGHT | 11.8″ |
| SEAT TUBE ANGLE | 71° |
| HEAD TUBE | 5″ Tall Integrated Campy Style |
| B.B. STYLE | Mid |
| BRAKE MOUNTS | Chain-stay 990 |
| DROPOUTS | 3/8″ |
| SEAT POST SIZE | 1″ / 25.4mm – Frame slotted for 28.6mm Seatpost Clamp |
| WEIGHT | 5.1 lbs |
| MAX TIRE | 22X2.35″ |
| MAX SPROCKET | 36T |
Original: $549.99
-65%$549.99
$192.50Product Information
