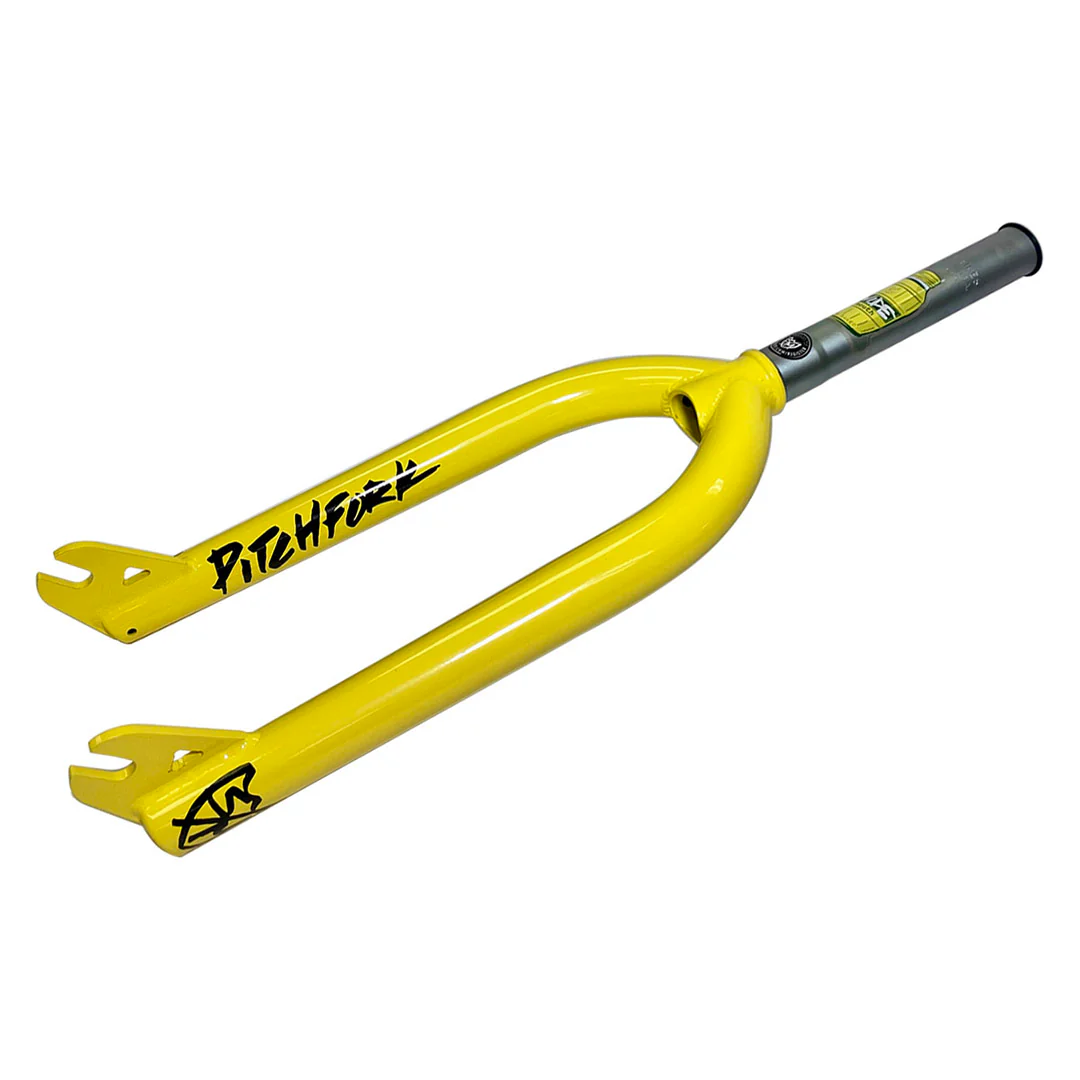

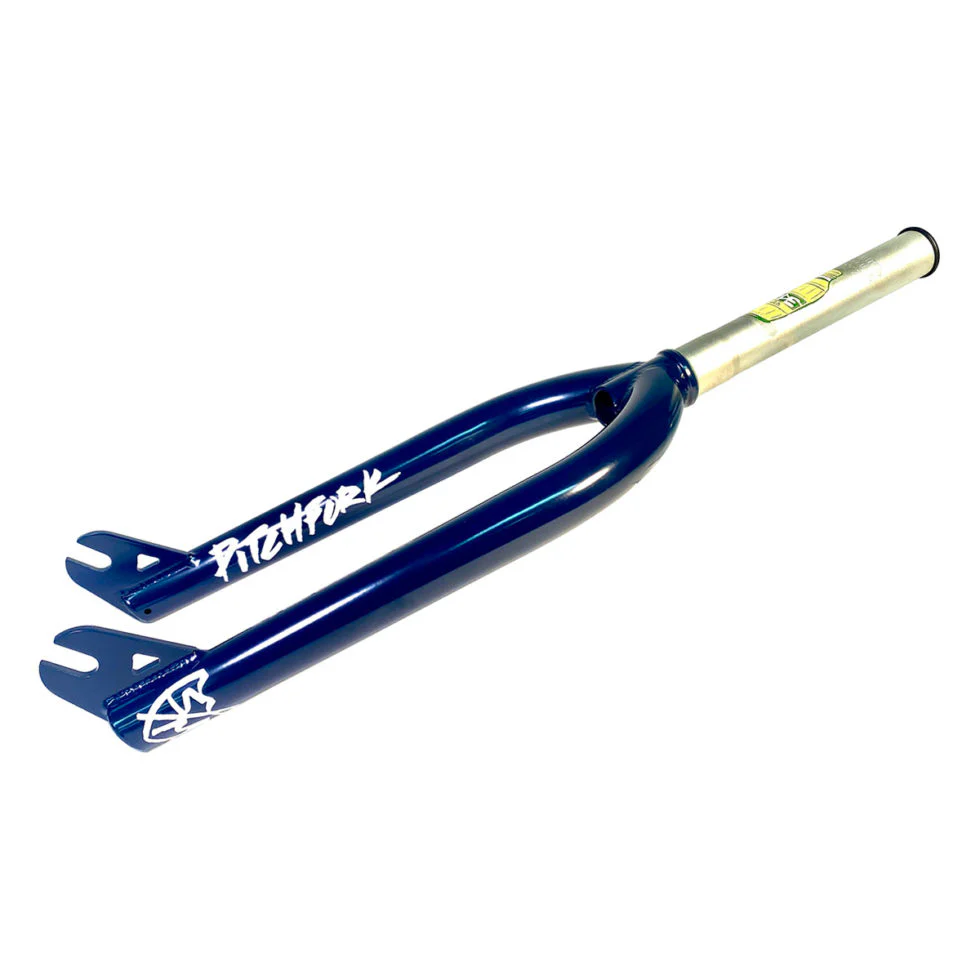

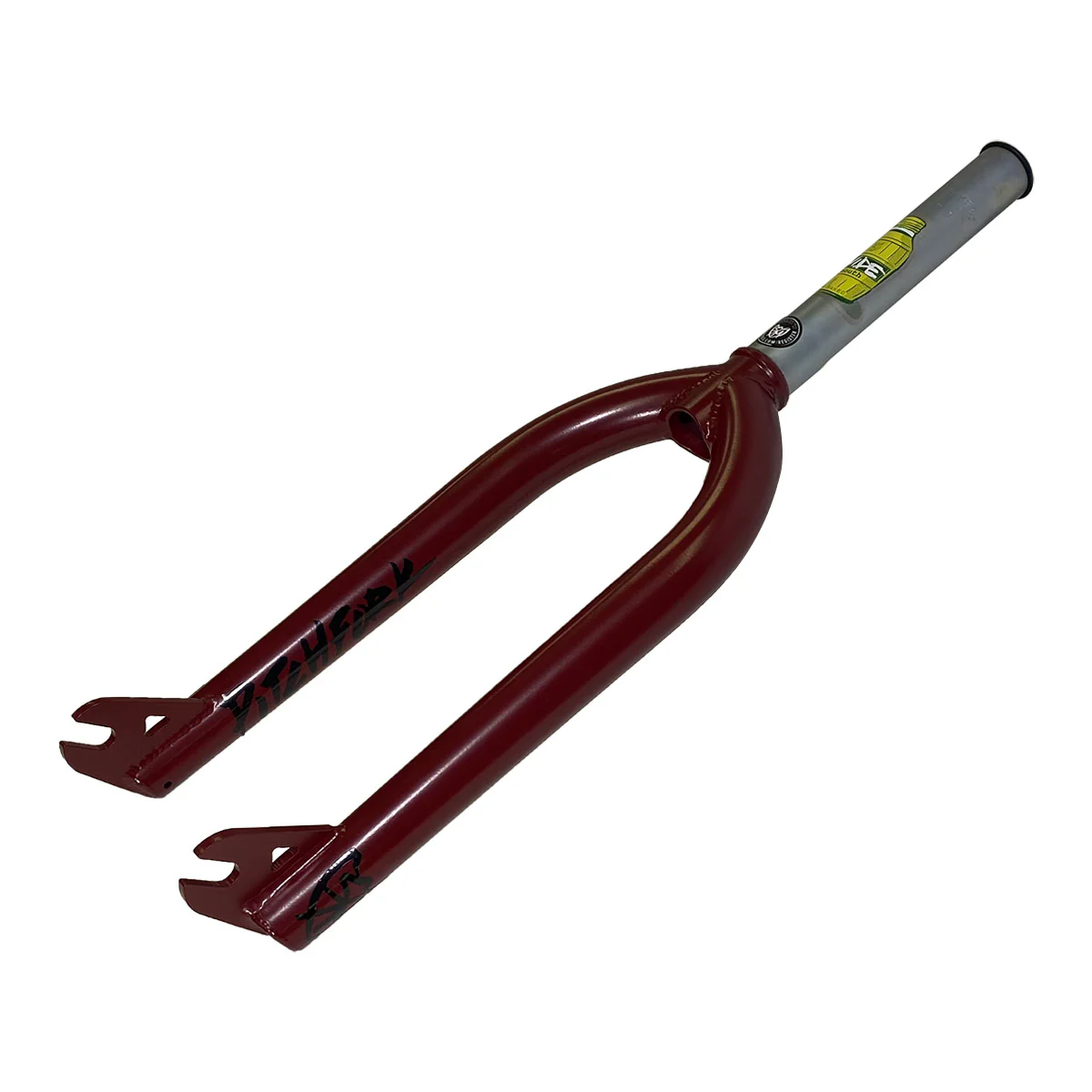

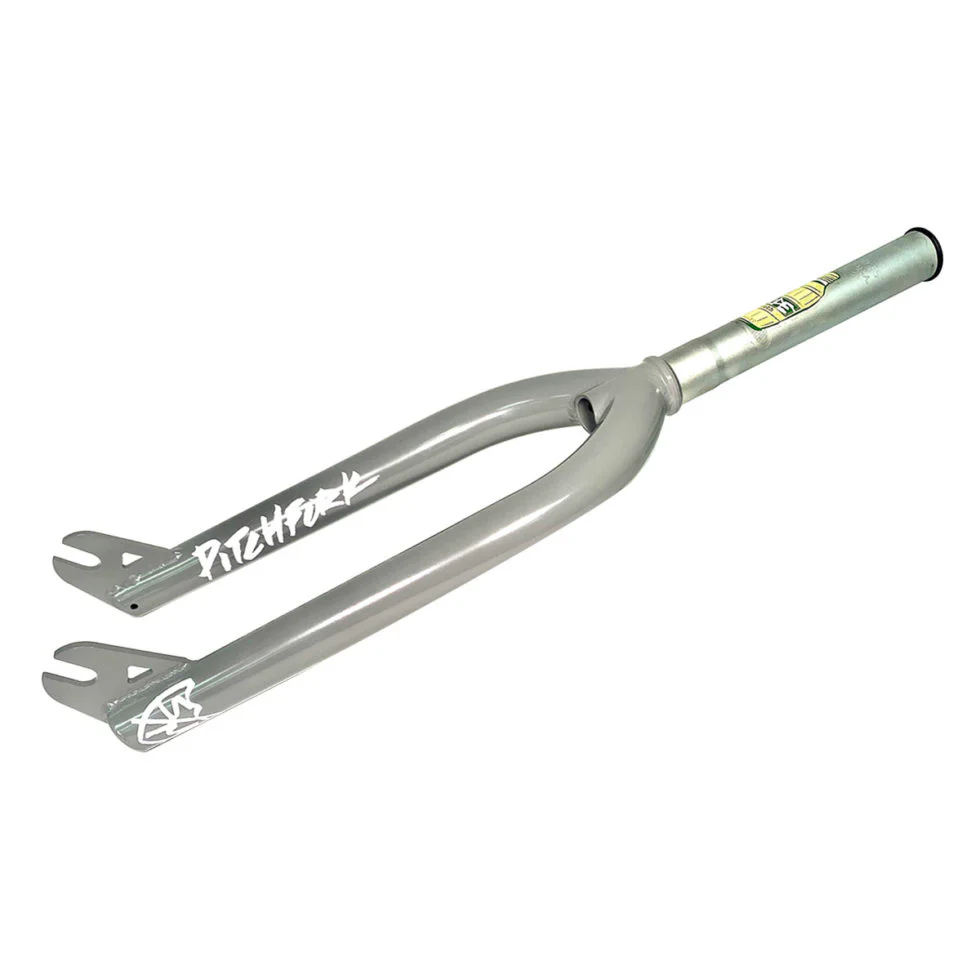

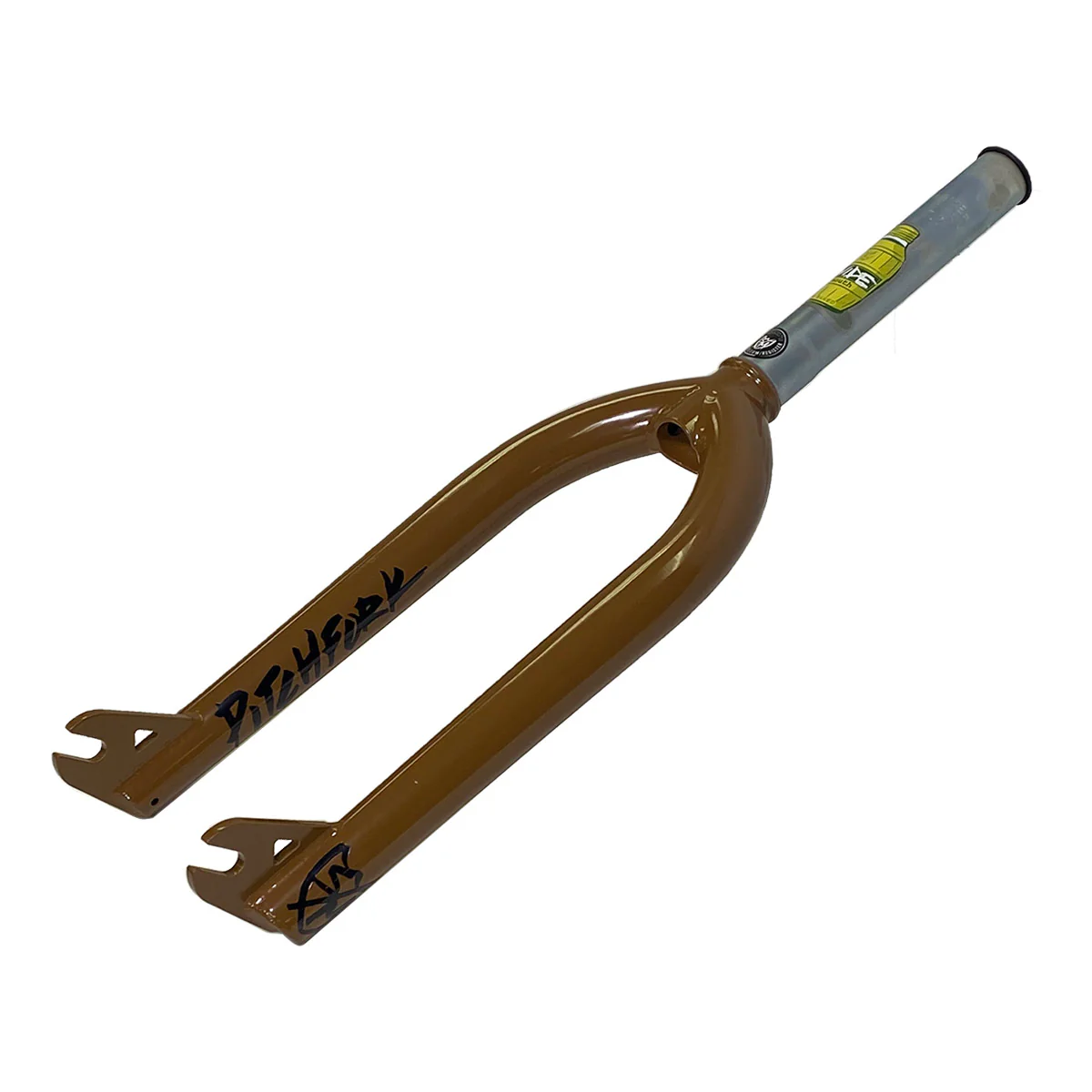

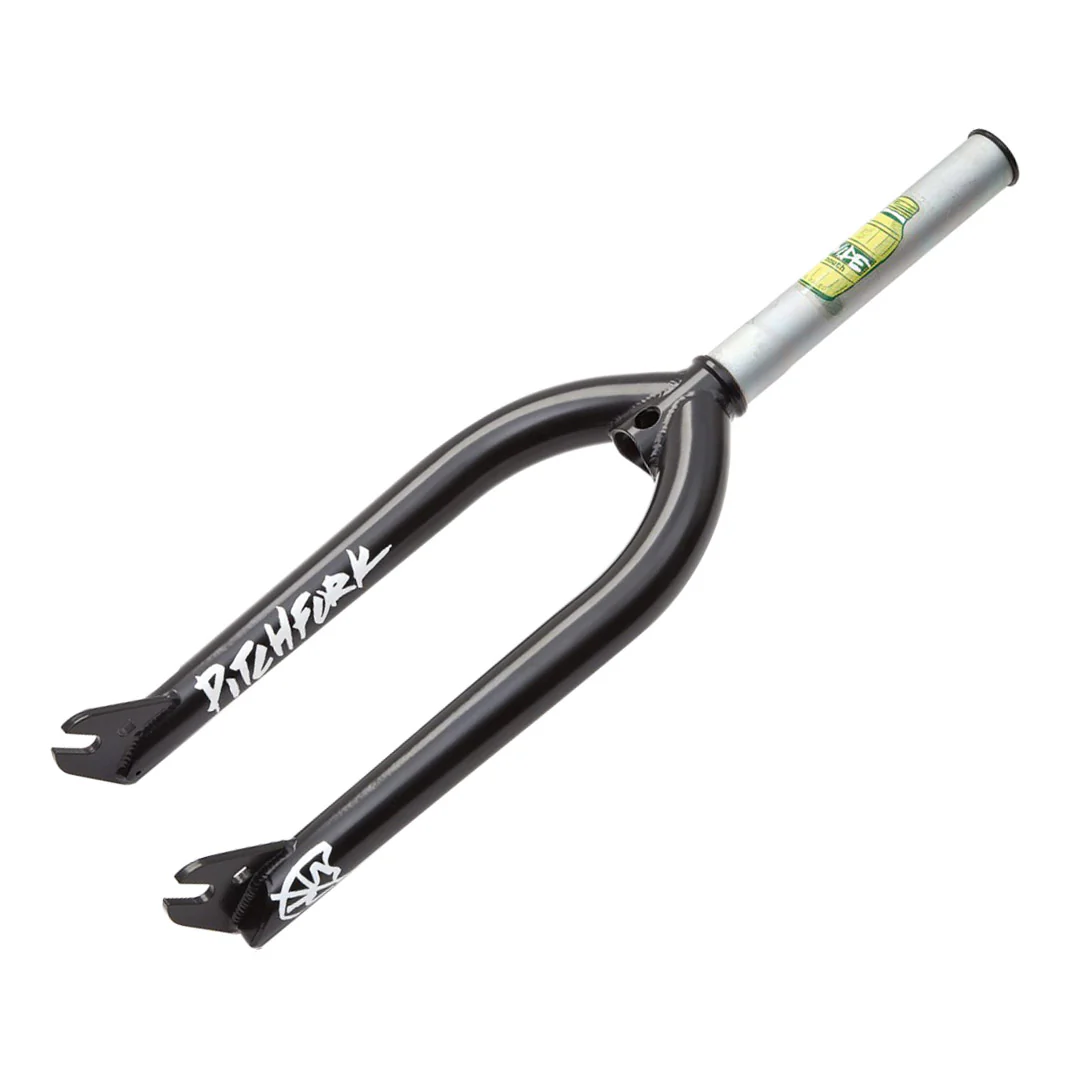

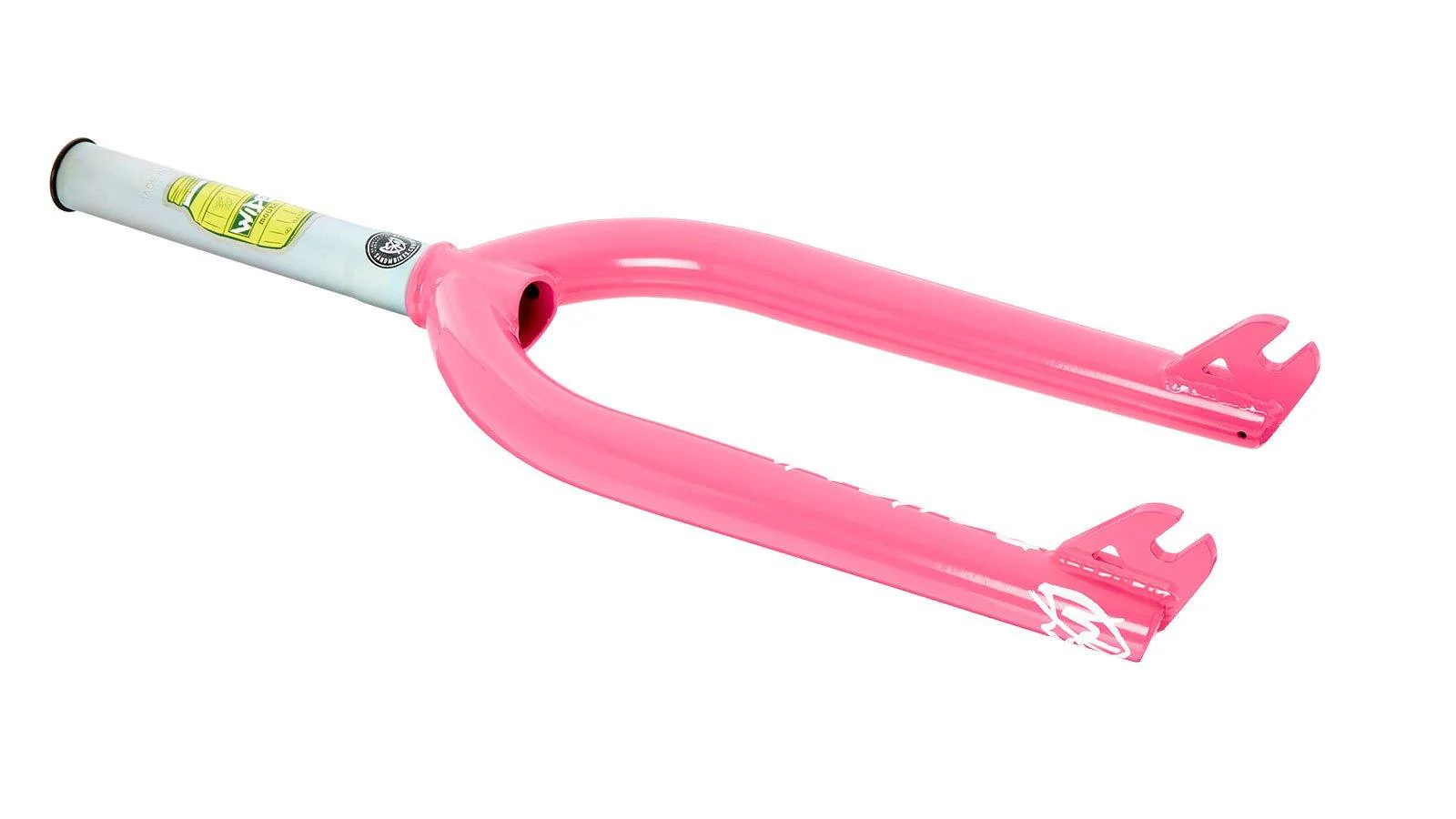

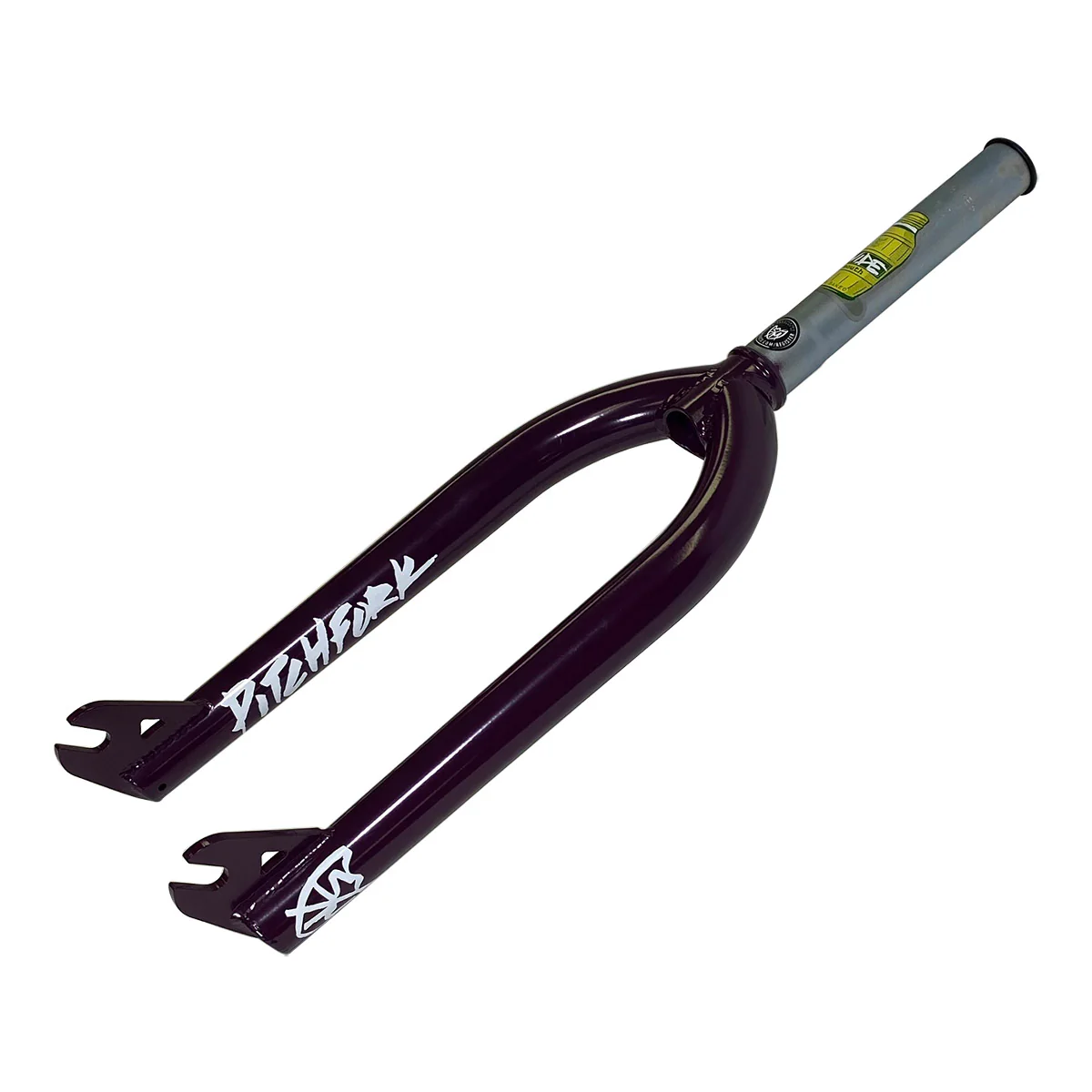

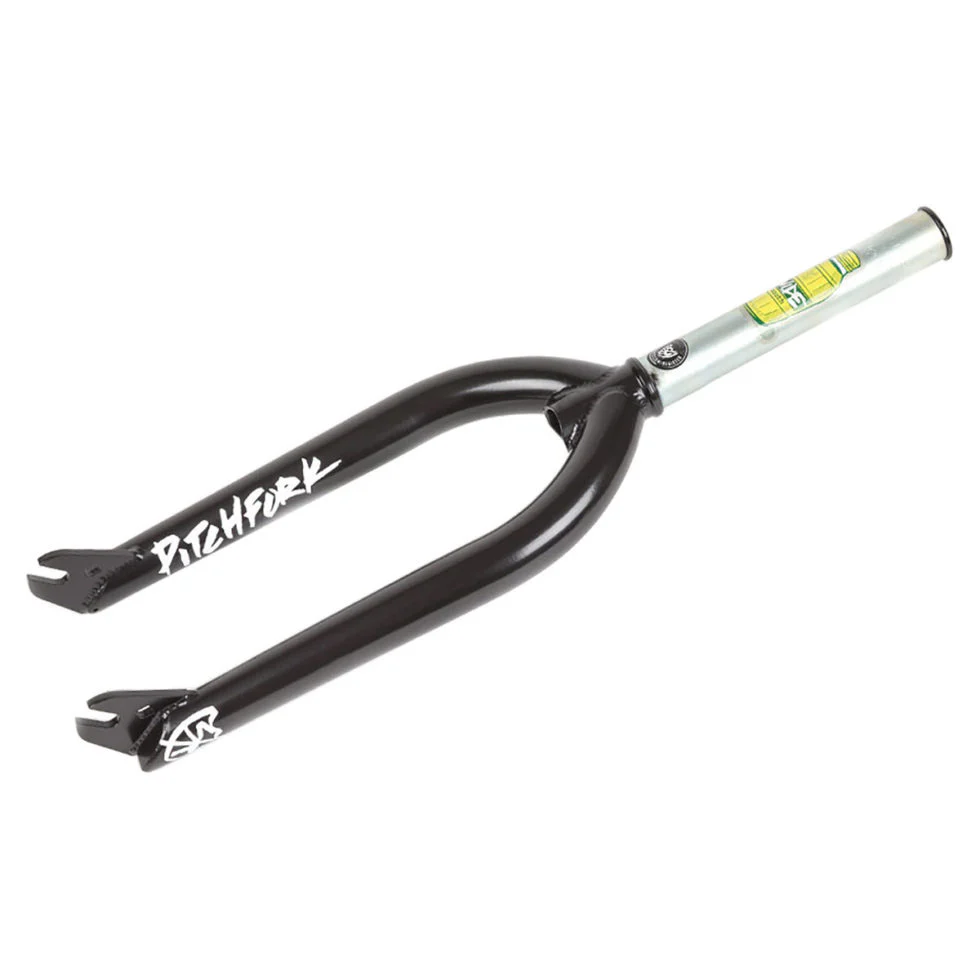

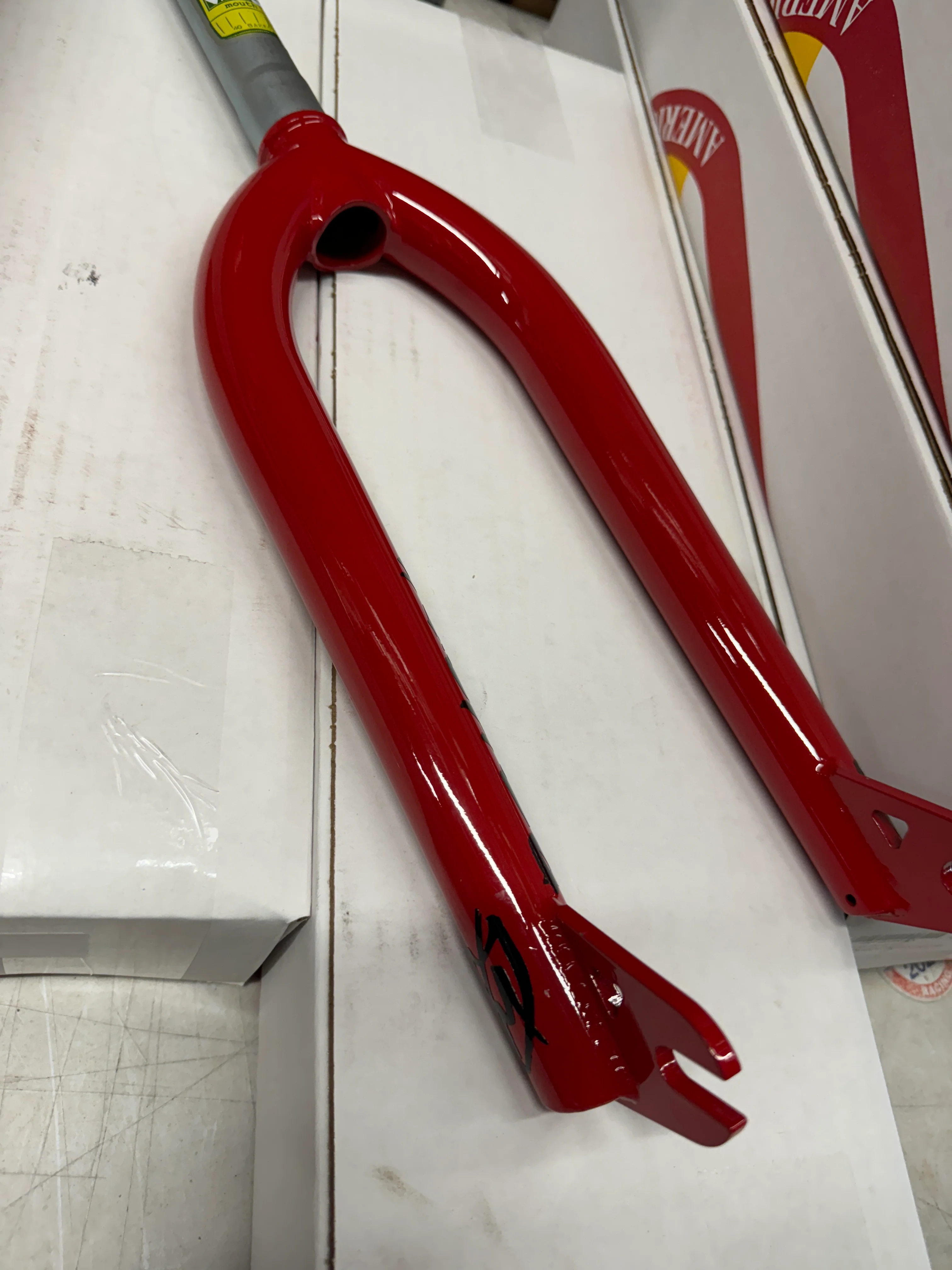

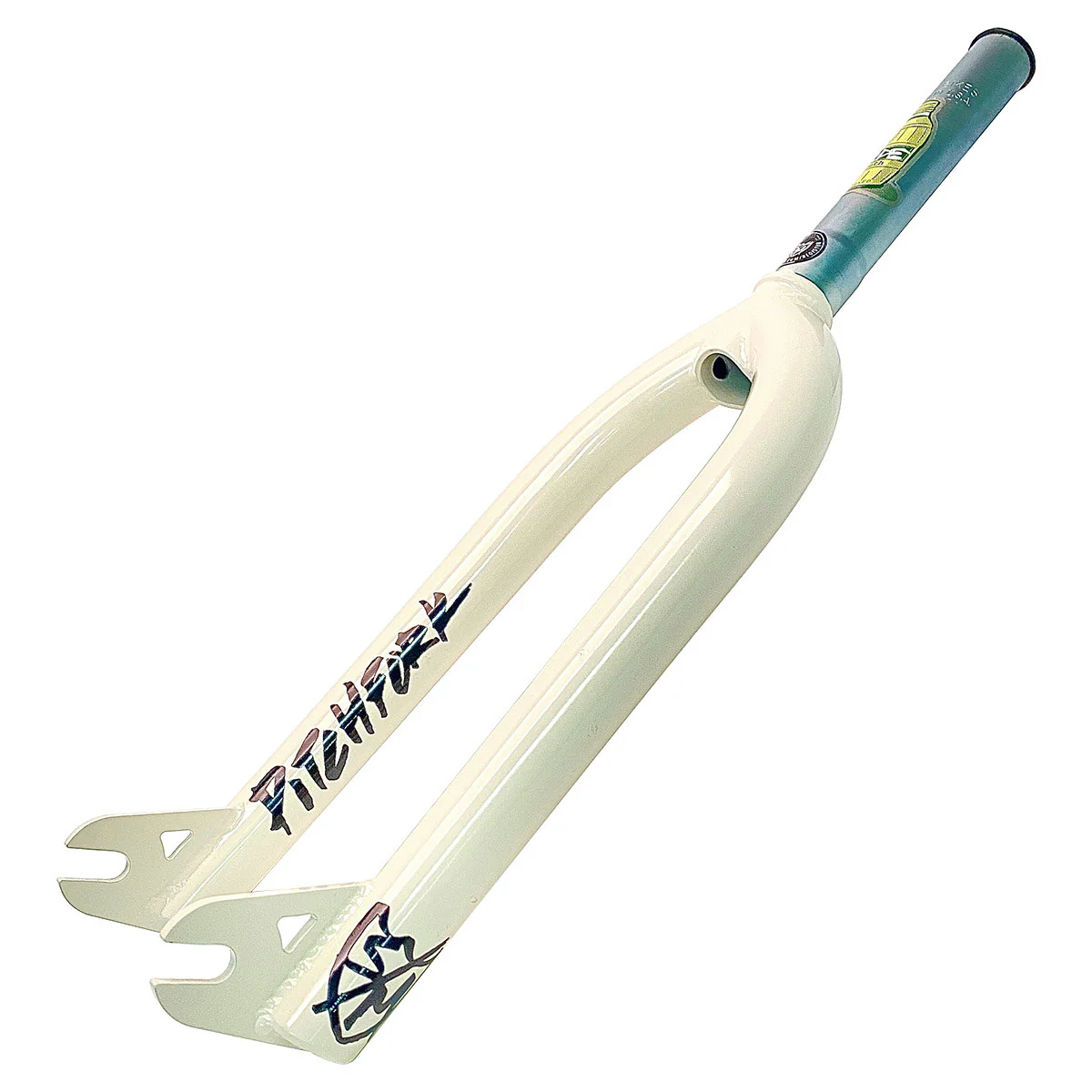

S&M Widemouth 20" Pitch Forks 33mm offset

The Widemouth fork features everything you know and trust from S&M forks–the finest quality construction and made to withstand the hardest riding you can dish out. The Widemouth name comes from a larger curve radius that creates increased clearance for the larger tire sizes found on modern bikes. A traditional 33mm offset provides stability and control on all terrains and at any speed. Available for 20 wheel sizes.

LEGS	Double Butted, Tapered, 4130 CrMo
DROPOUTS	Laser Cut 3/8″ Slot
STEERER TUBE	Integrated Bearing Race. 1 Piece CNC-Machined 4130 CrMo, Extruded 6061 Steerer Tube Insert
STEERER TUBE LENGTH	173mm
COMPRESSION	M24 X 1.5 Thread – 6mm Allen Slot
AXLE TO CROWN HEIGHT	20″ – 320mm
OFFSET	33mm
WEIGHT	1.99 lb (.90 kg) 20″
HEAT TREAT	4Q Baked Post-Weld
TIRE CLEARANCE	2.45″
