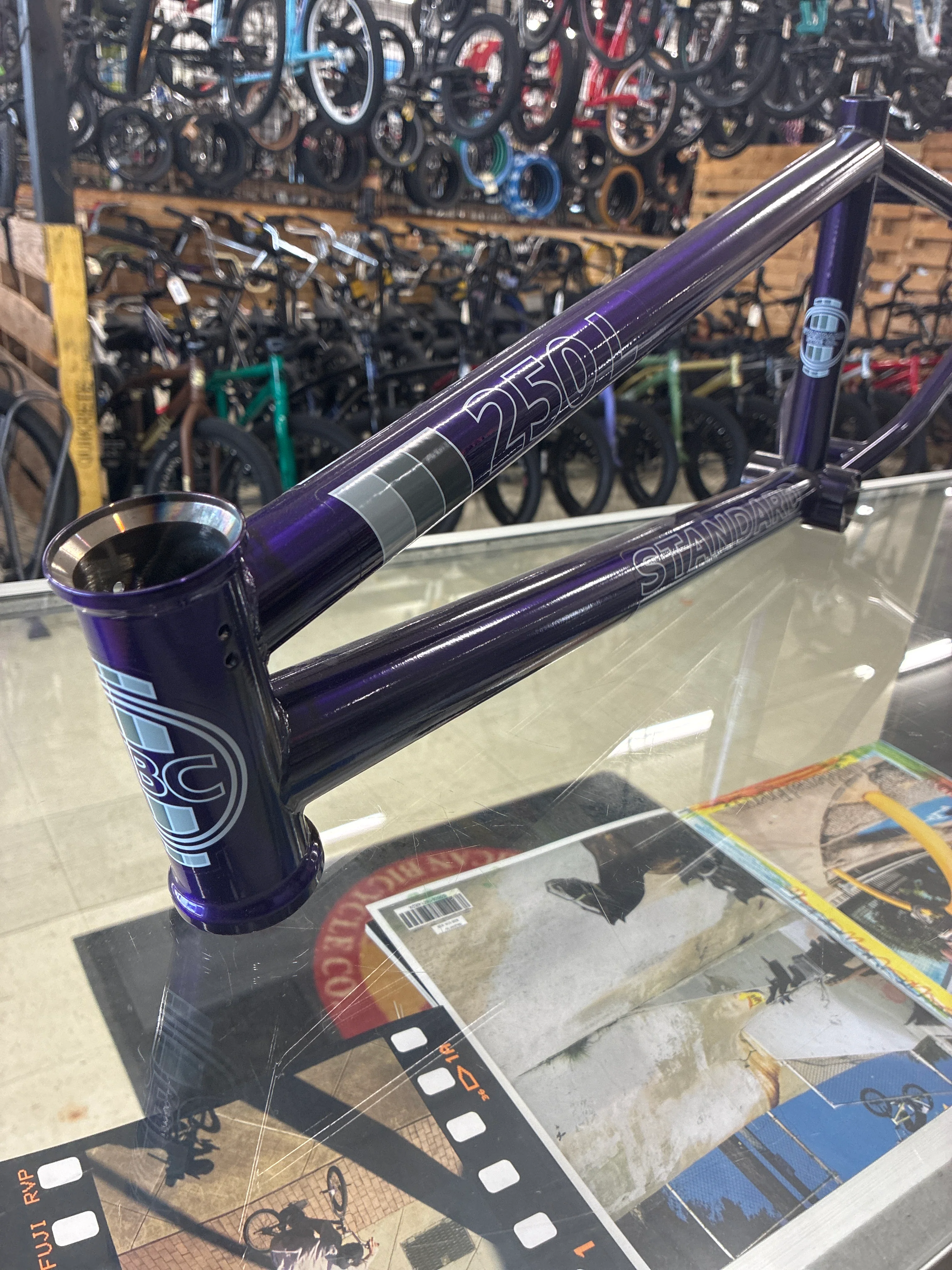

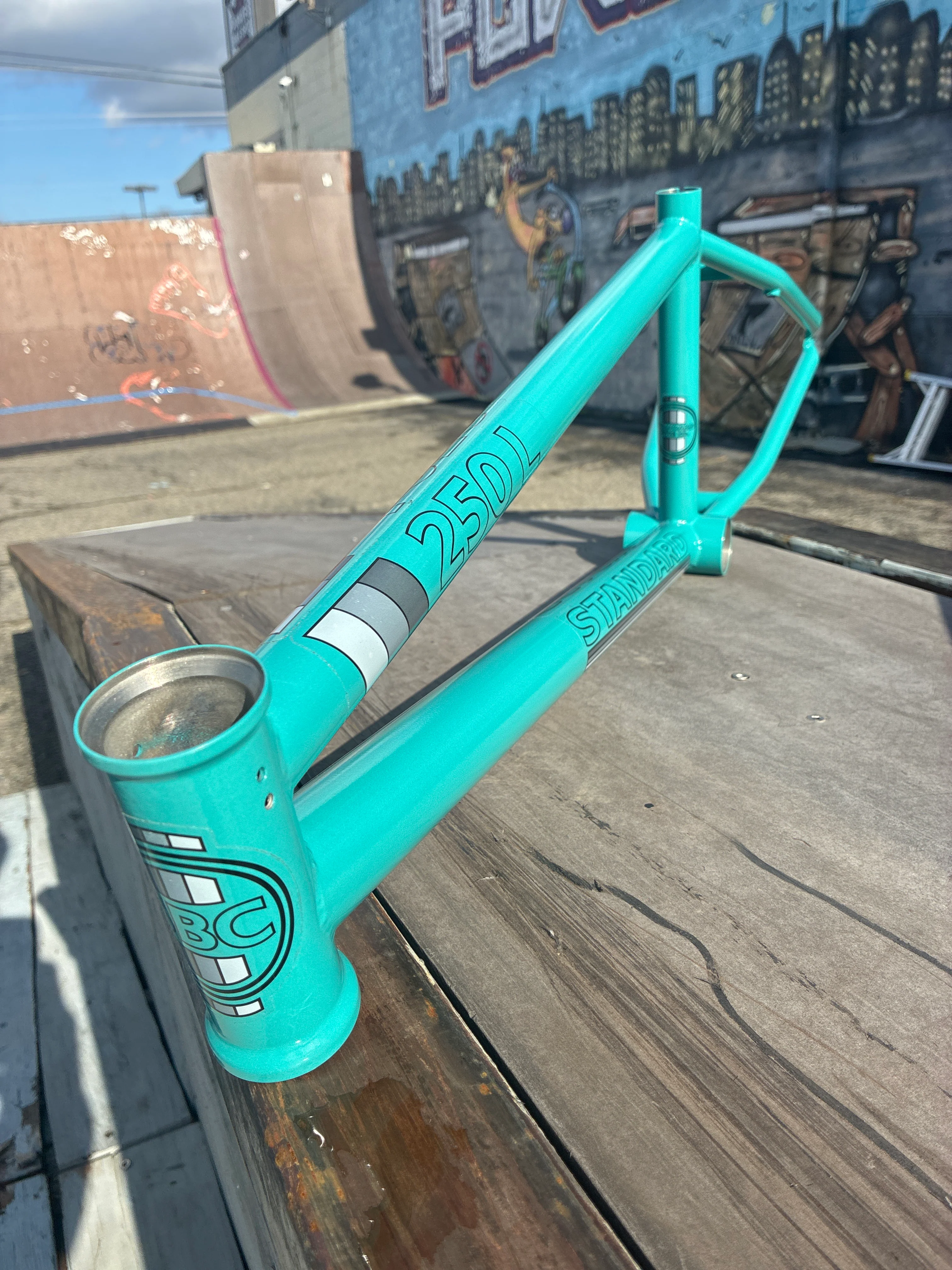

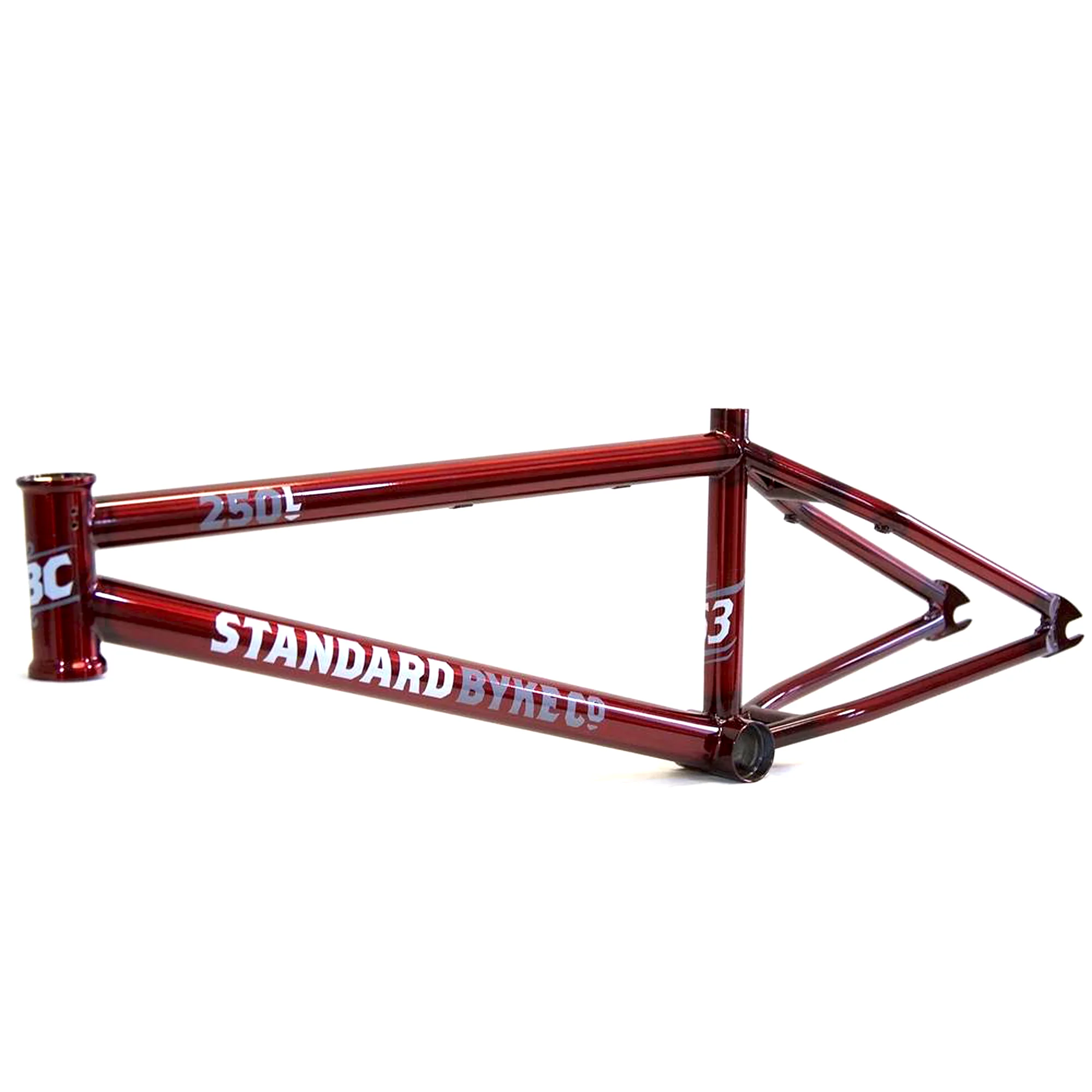

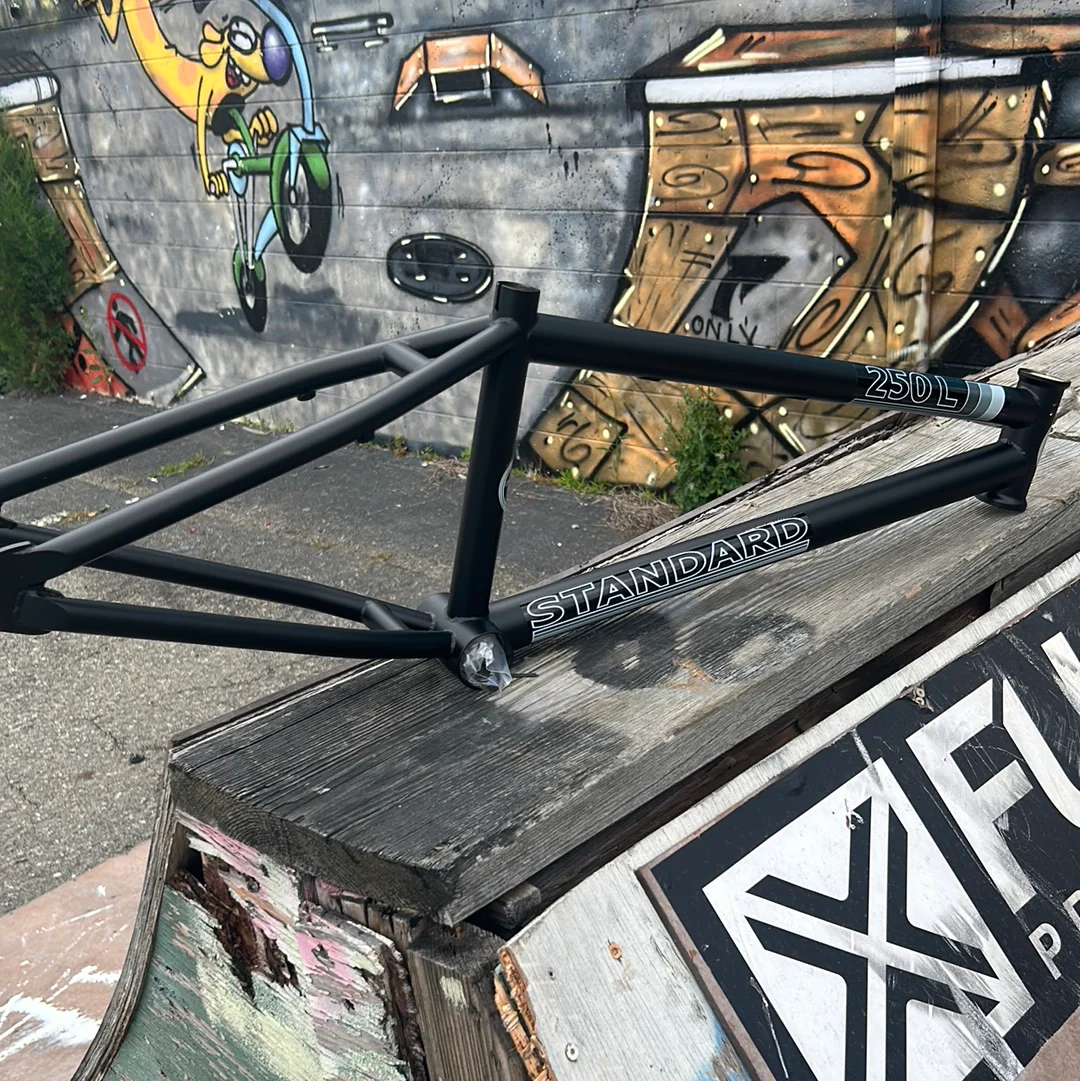

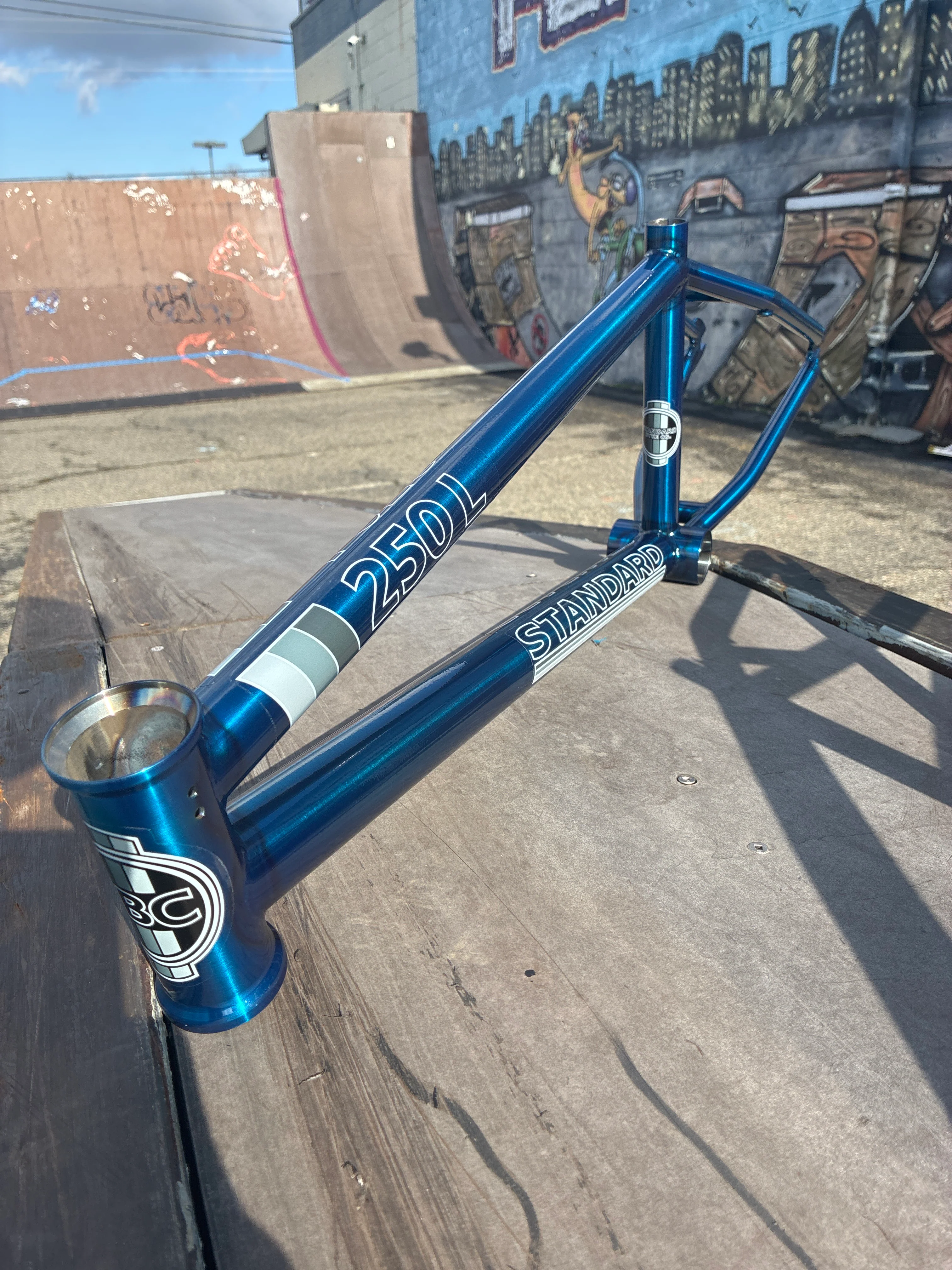

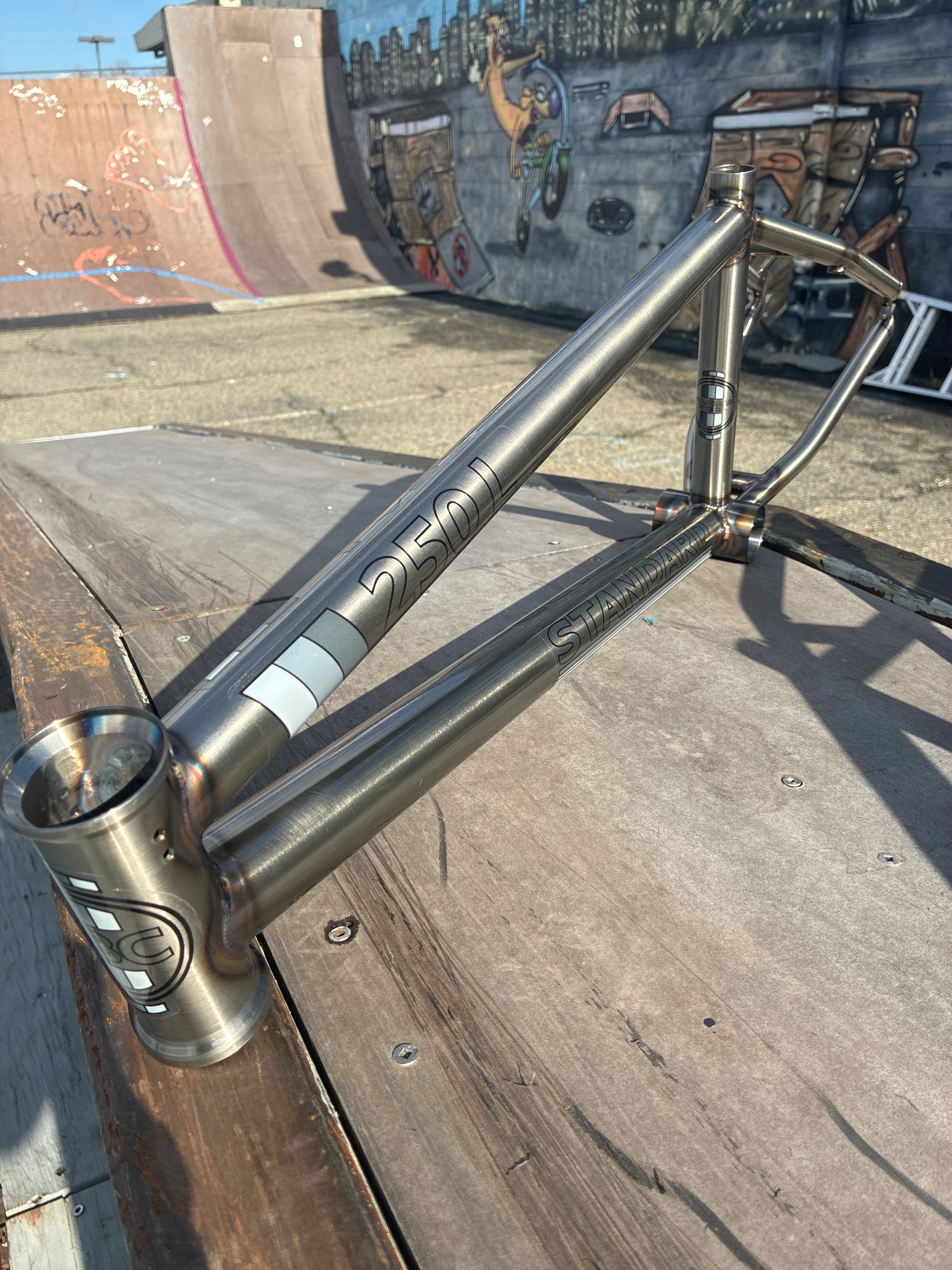

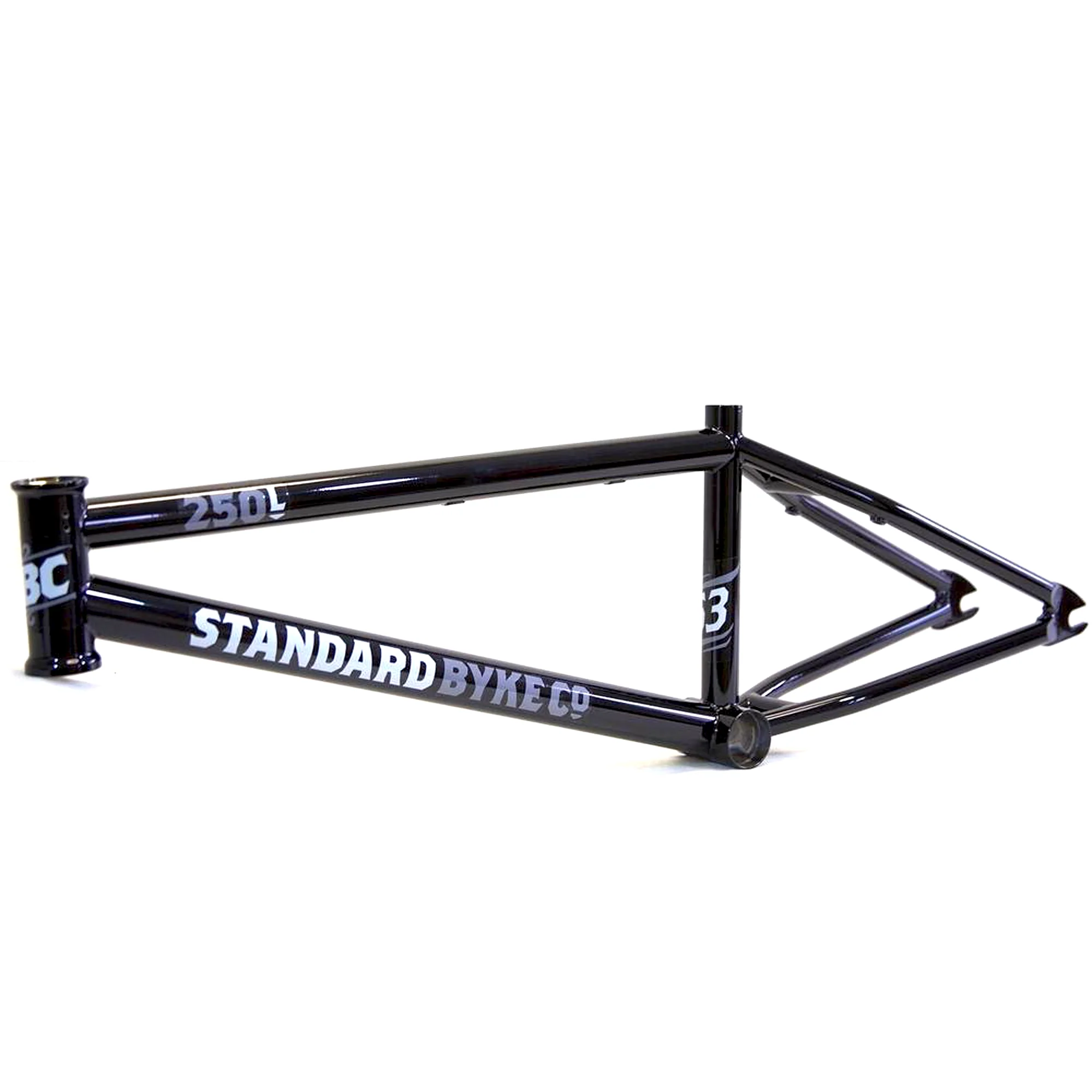

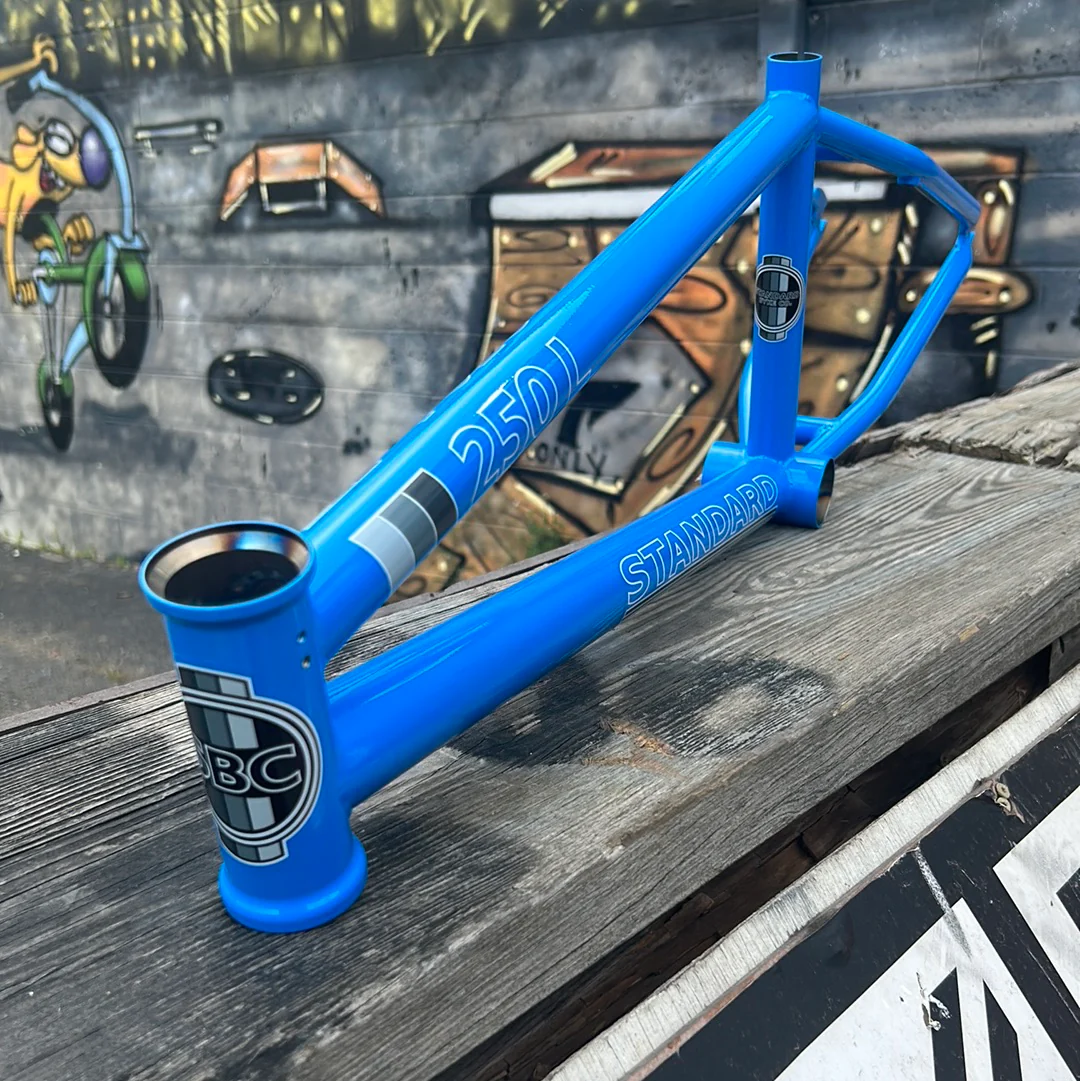

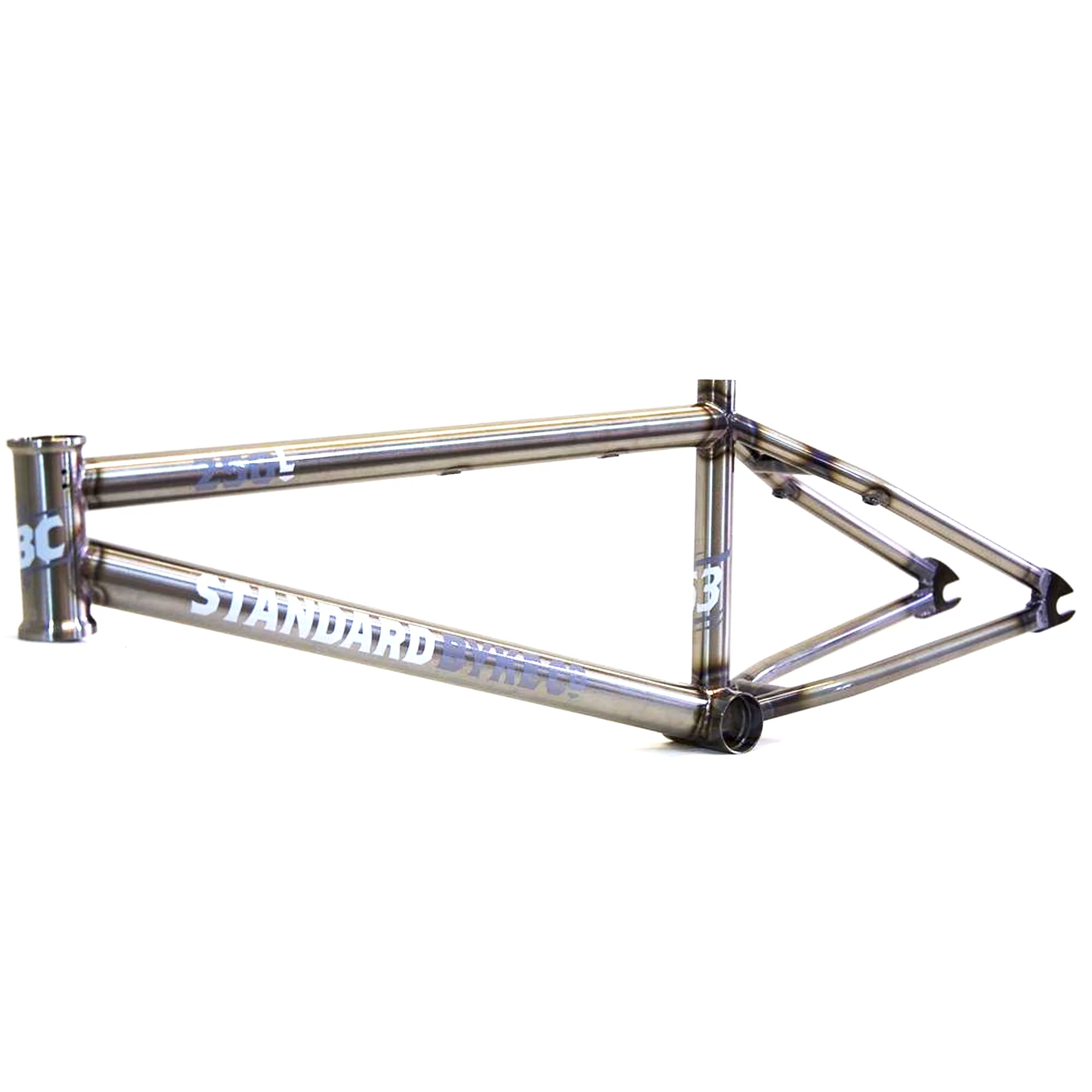

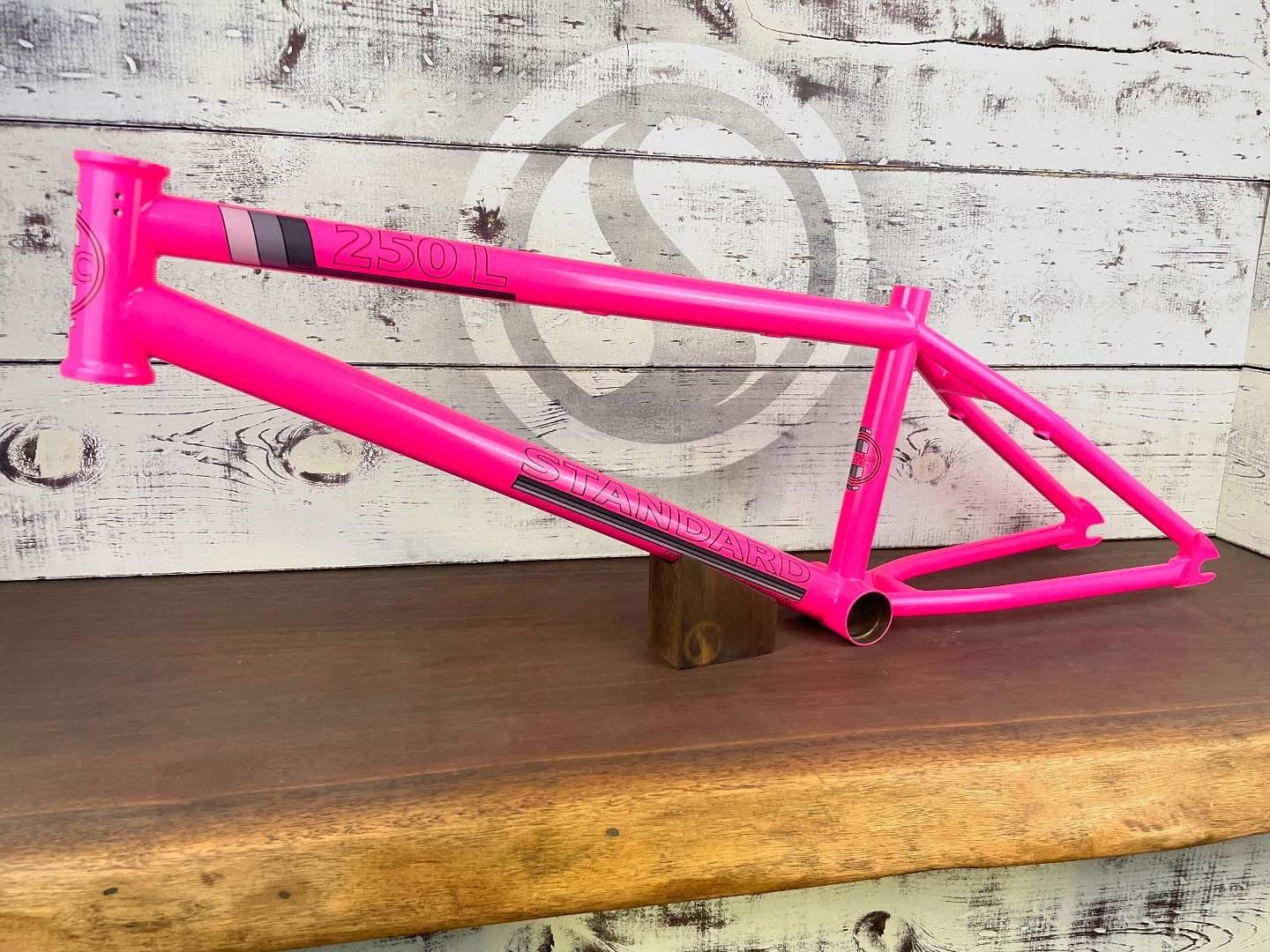

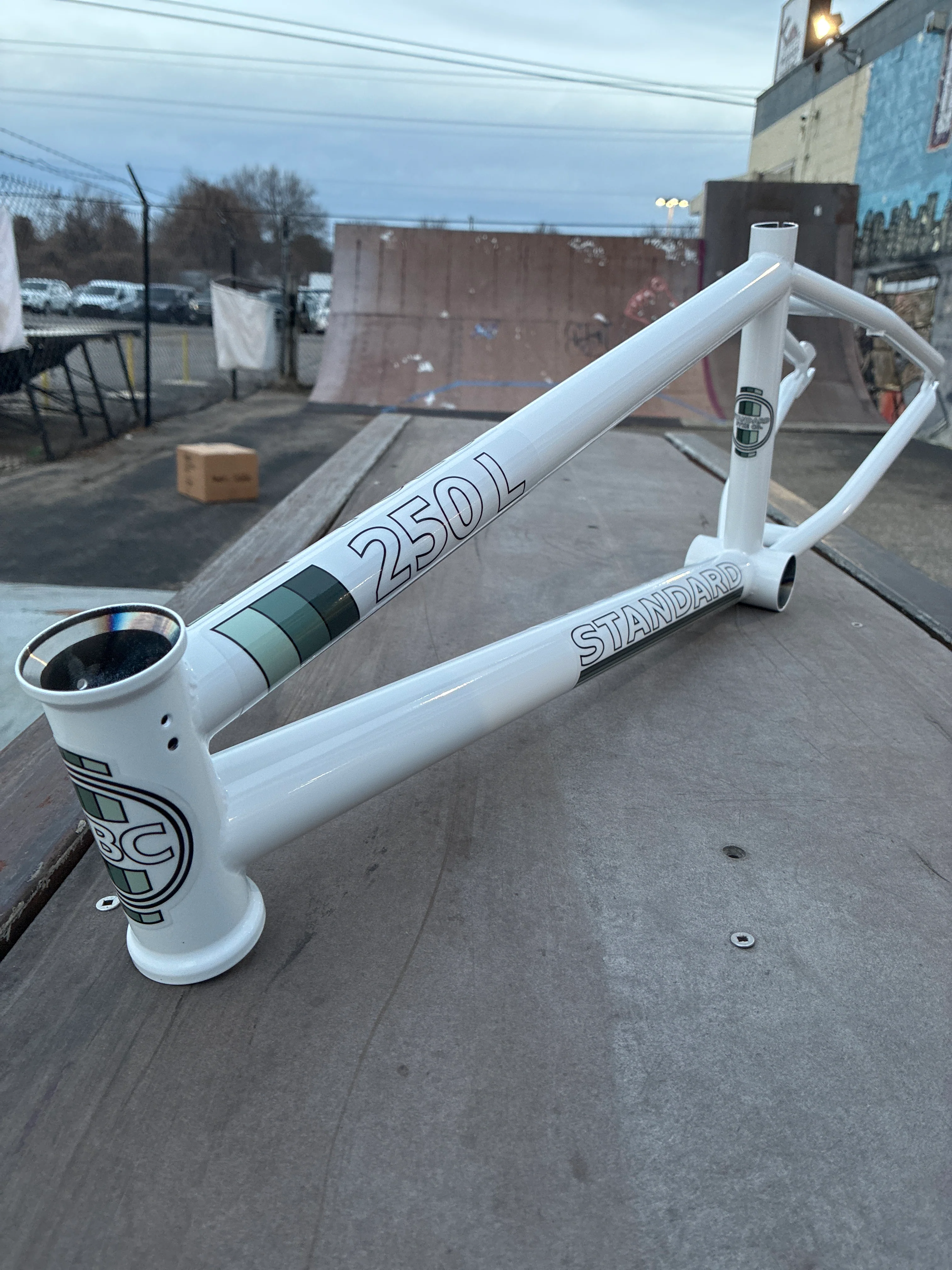

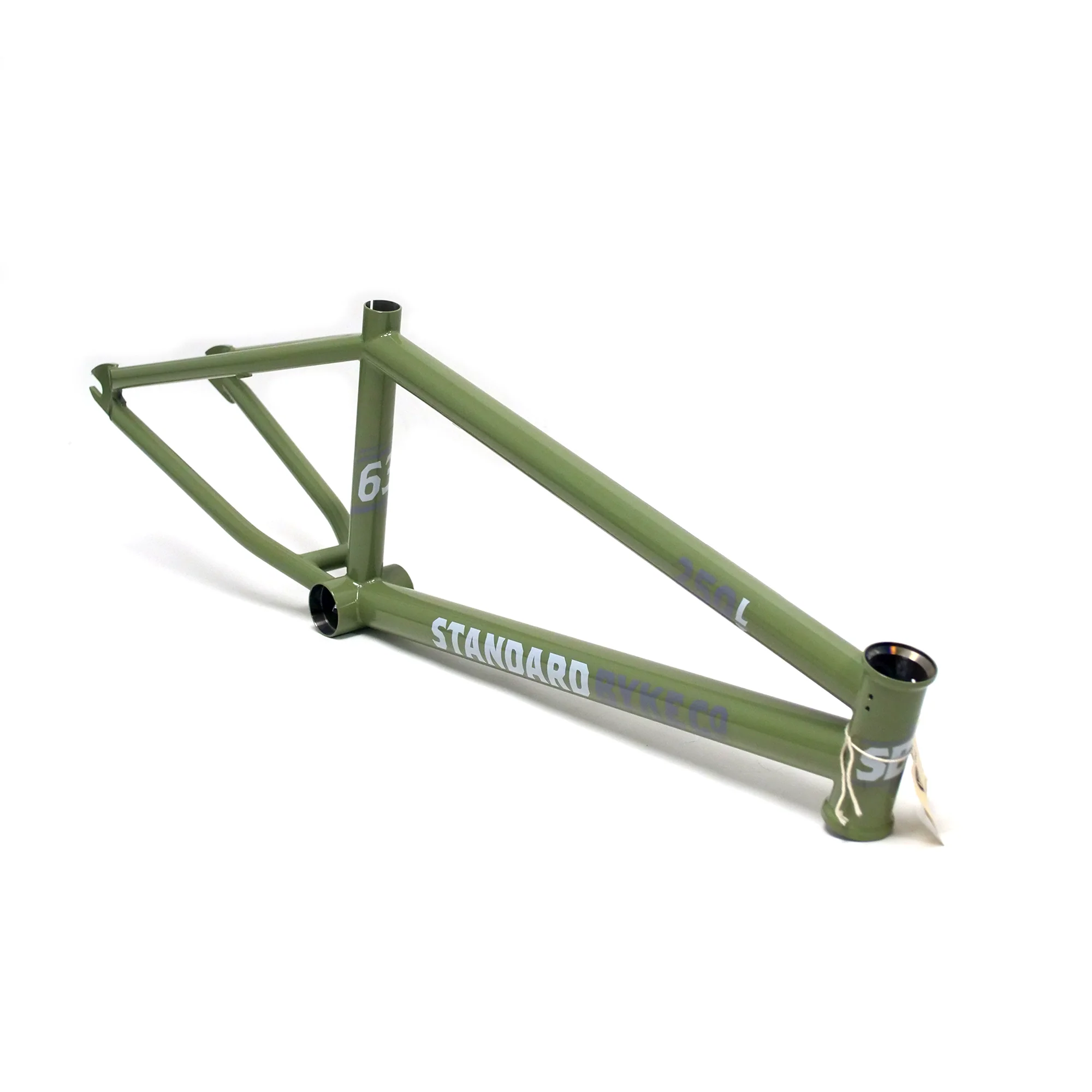

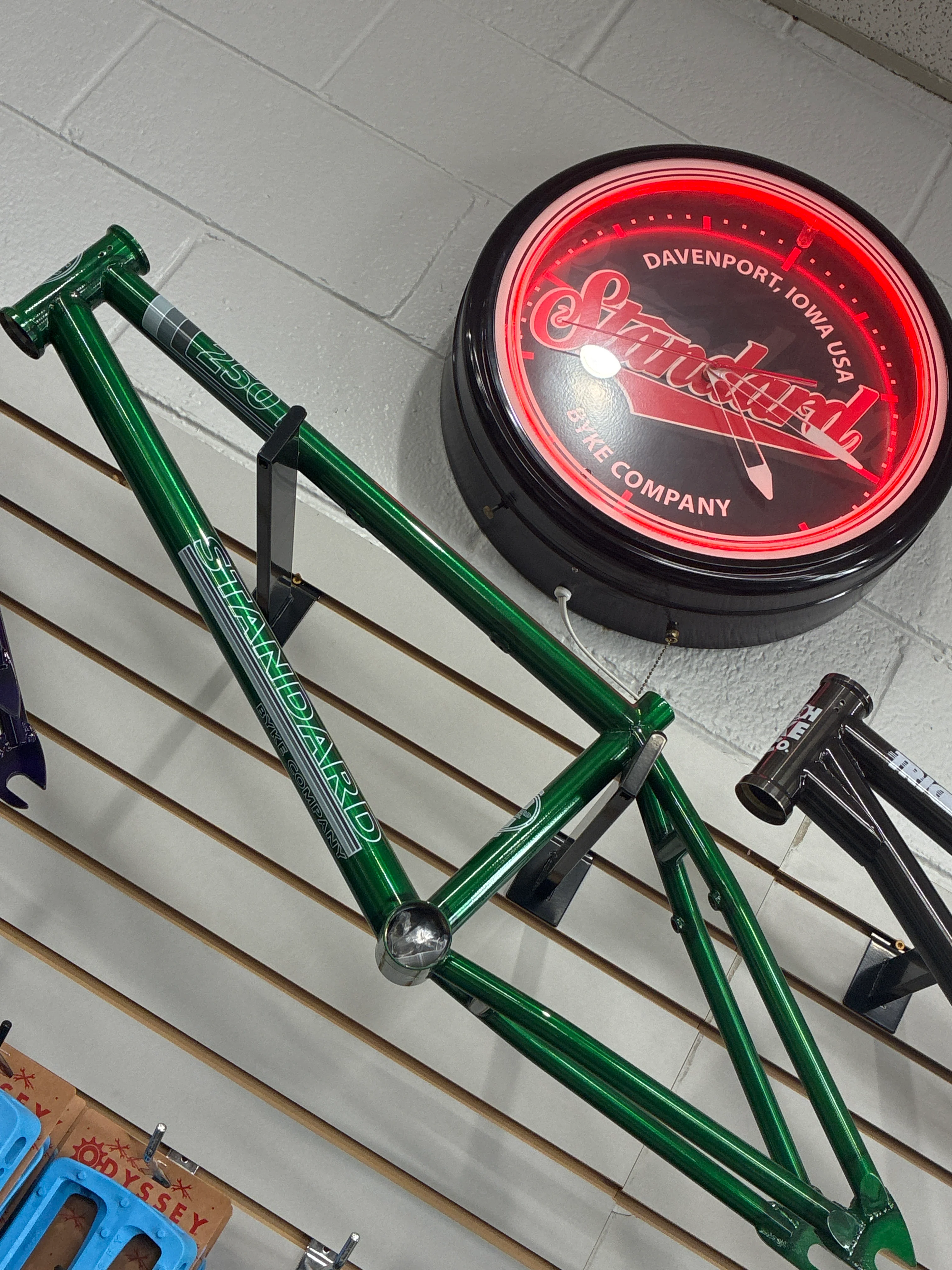

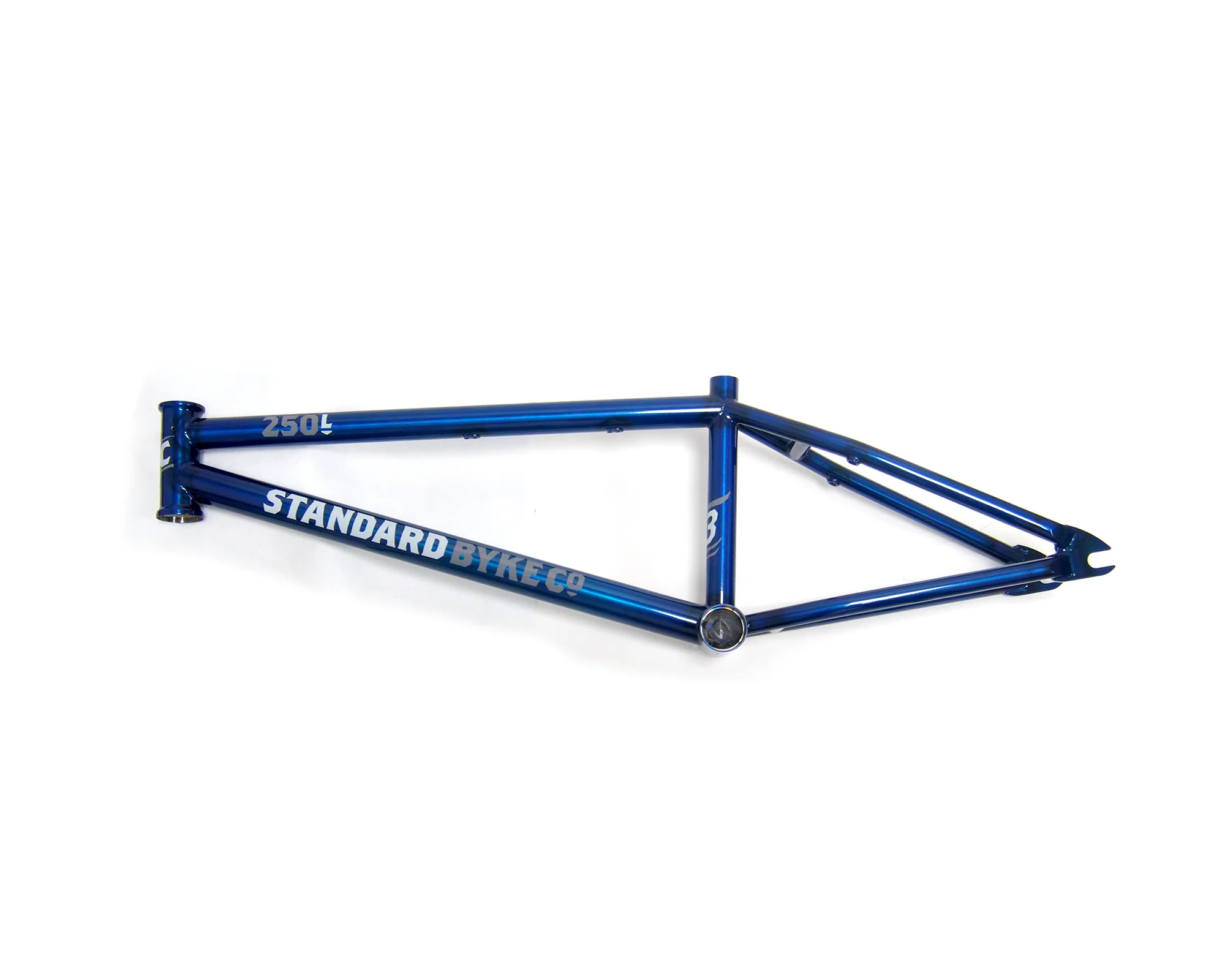

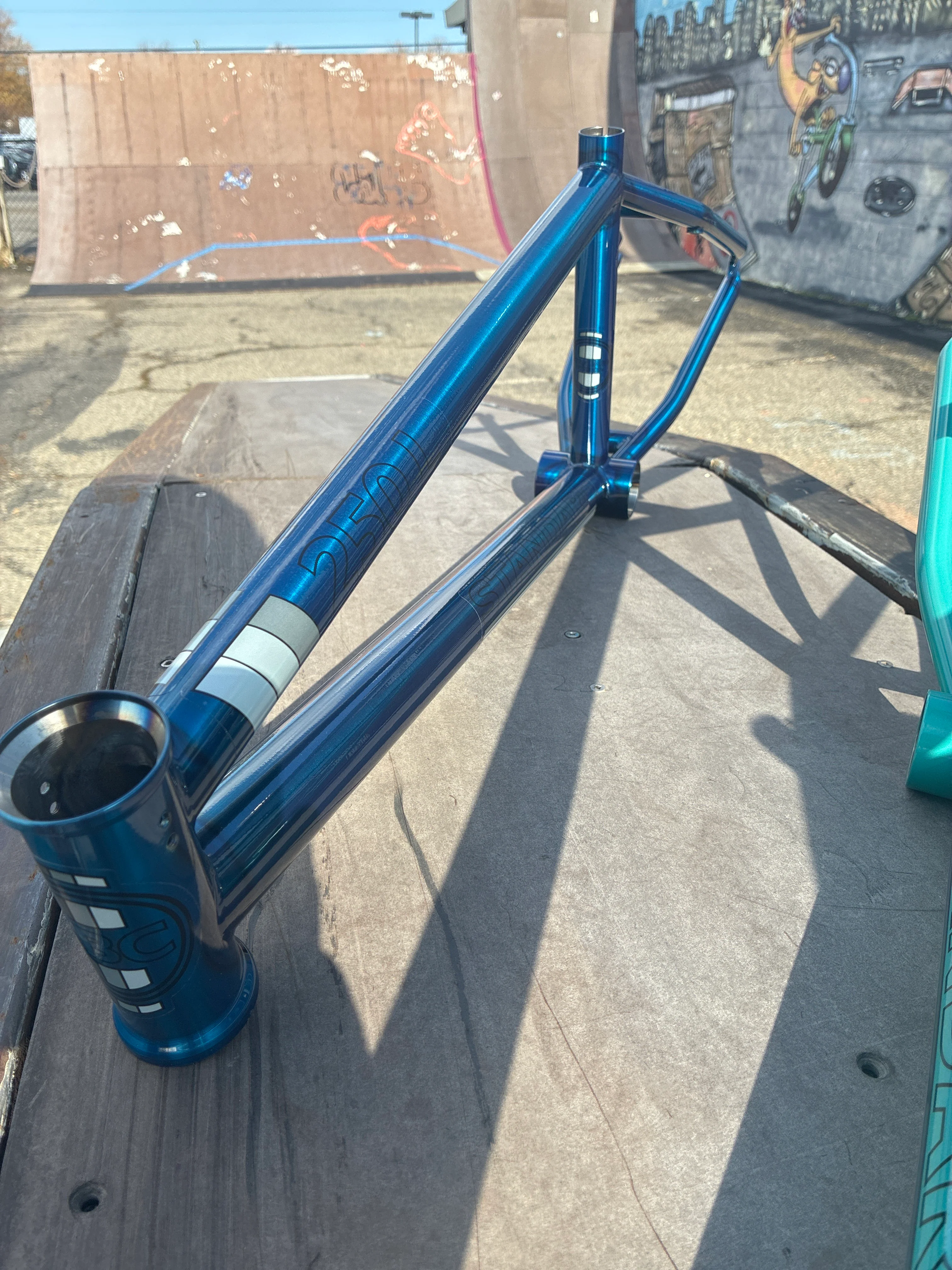

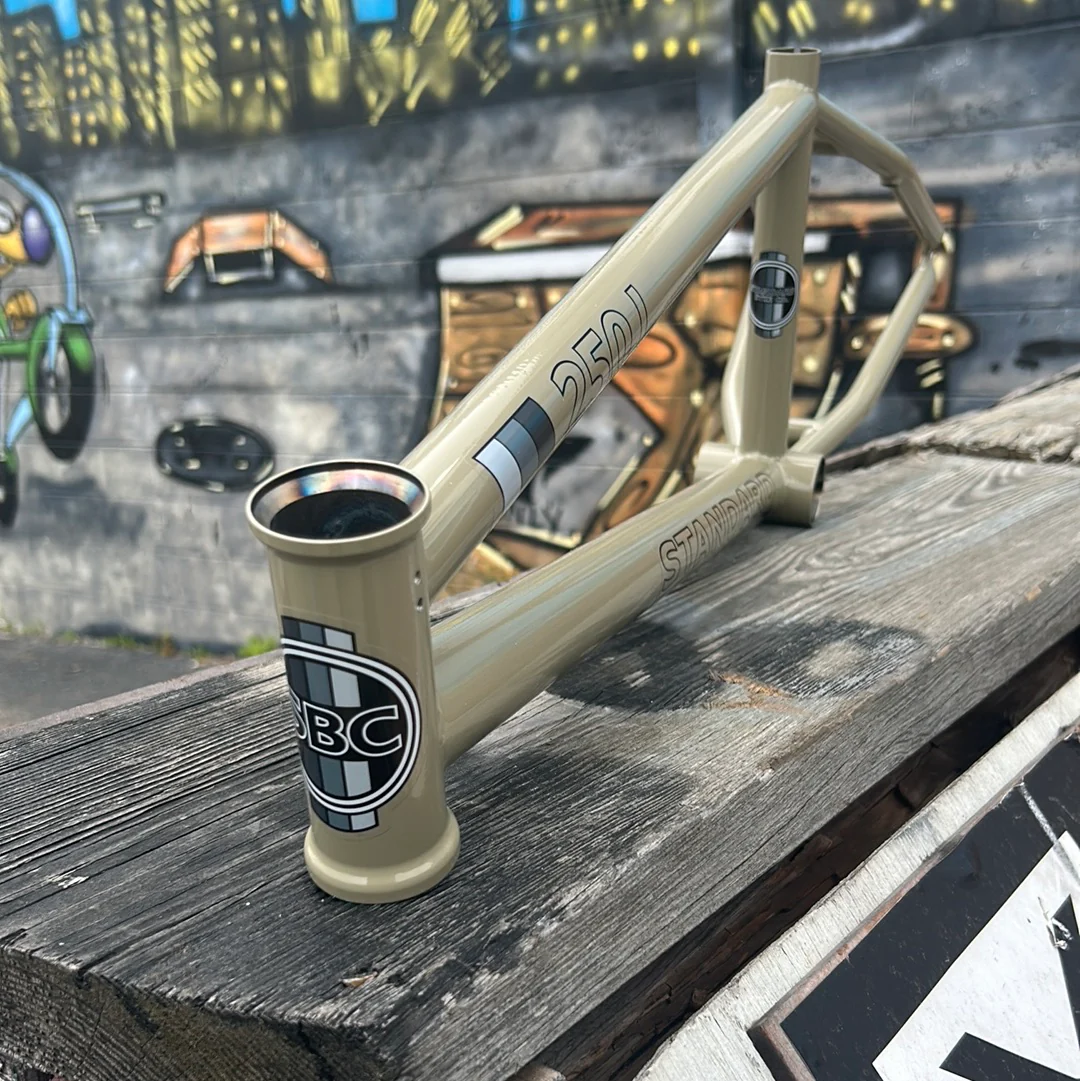

STANDARD BYKE 250L Frame

The 250L frame is a light weight, versatile set up that can easily transition between street, park and trails sessions and maintains the strength and durability that make it a classic part of the Standard frame line up.



Head Tube    Integrated
Down Tube Diameter    1.50″
Top Tube Diameter    1.25″
Bottom bracket Type    Mid
Seat Tube Size    25.4″, Externally butted
Seat Stay O.D.    3/4″
Chain Stay O.D.     3/4″
Brake Mount Removable Under Seat Stays not included
Head Angle    75
Seat Tube Angle    71.0
Rear End Length-Slammed    13.5″
Top Tube Lengths    20.5, 20.75, 21 and 21.25
Bottom Bracket Height    11 5/8″
Drop Out Thickness    3/16″
Axle Slot Size    14mm
Gyro Tabs  Removable
Stand over height 8.50
