HUB OPTION* Profile Hub Axles



NOT FOR SALE. OPTION FOR WHEEL BUILDER

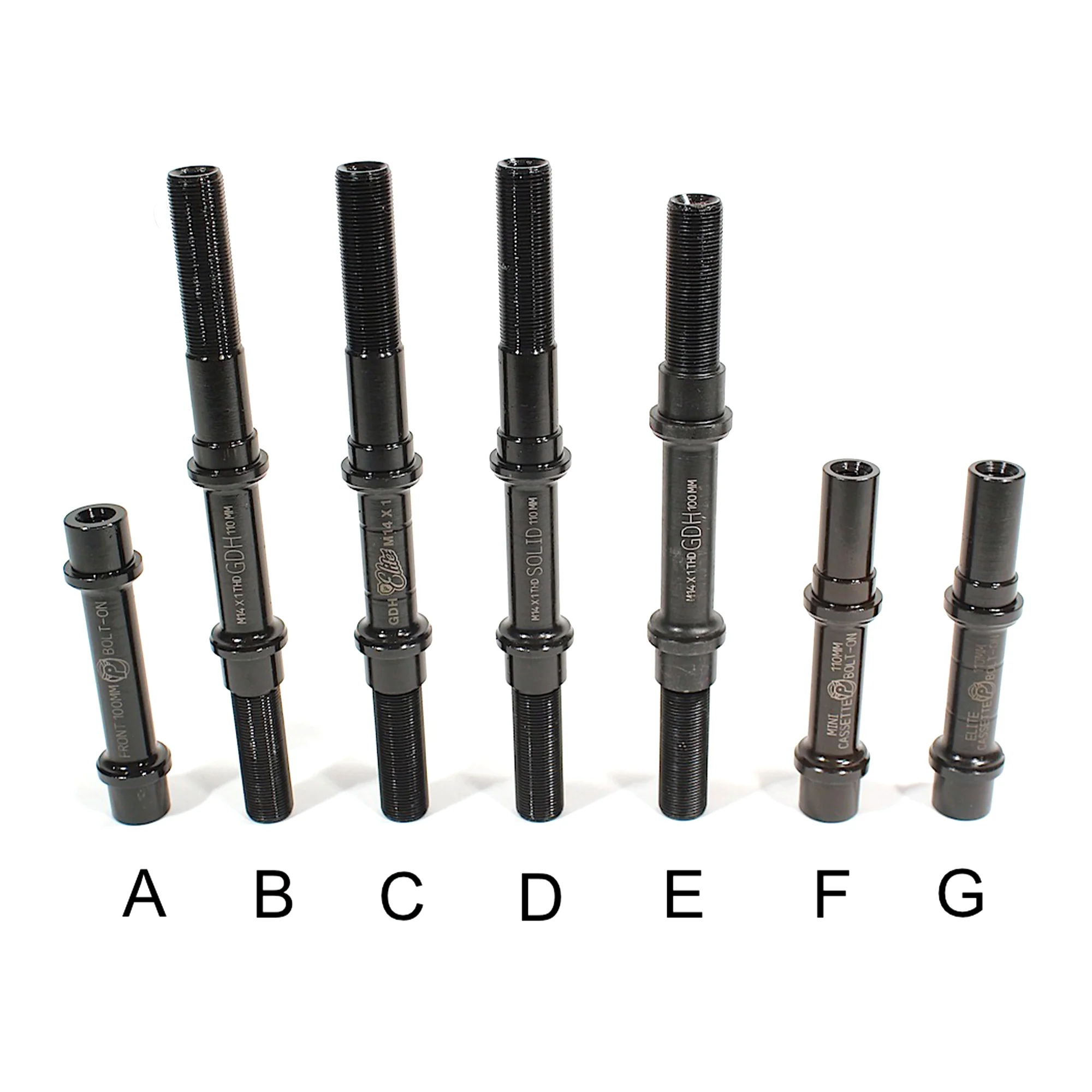

Chromoly axle types:

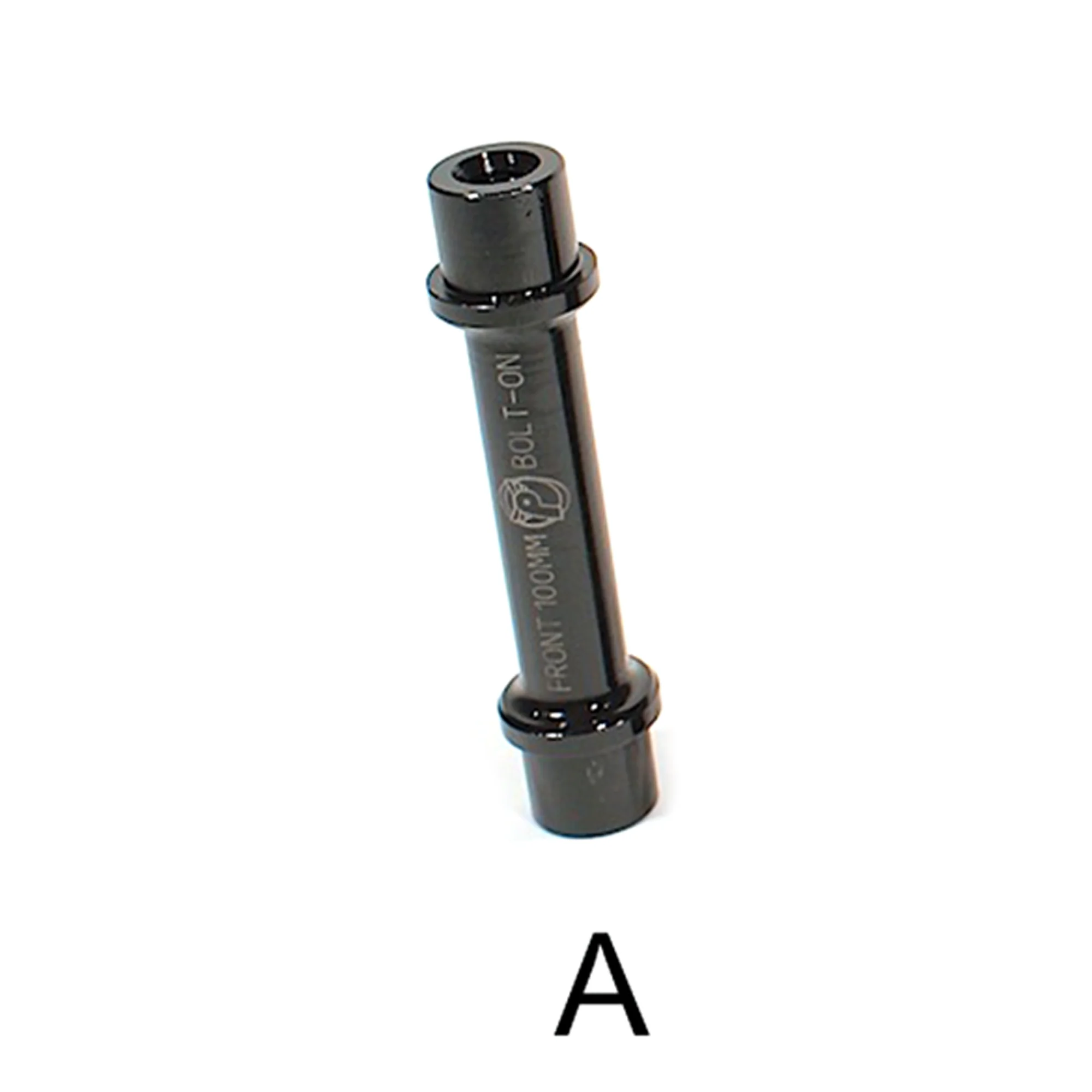

A. 3/8″ Threaded Mini Front Axle(fits Profile Mini, Elite, & Madera front hubs)

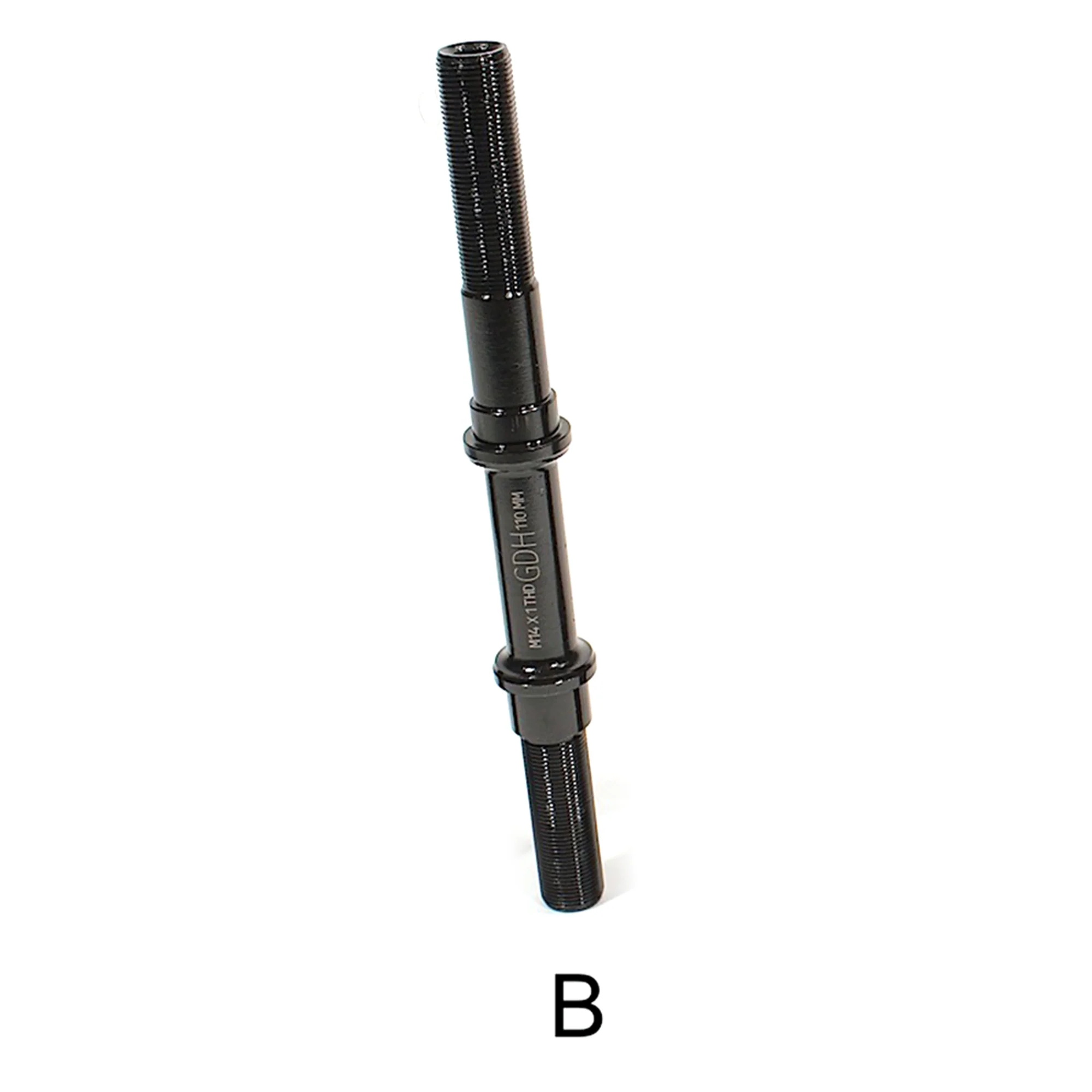

B. 14mm GDH Mini Cassette Axle(fits Profile Mini, Totem, High Flange, & Madera cassette hubs)

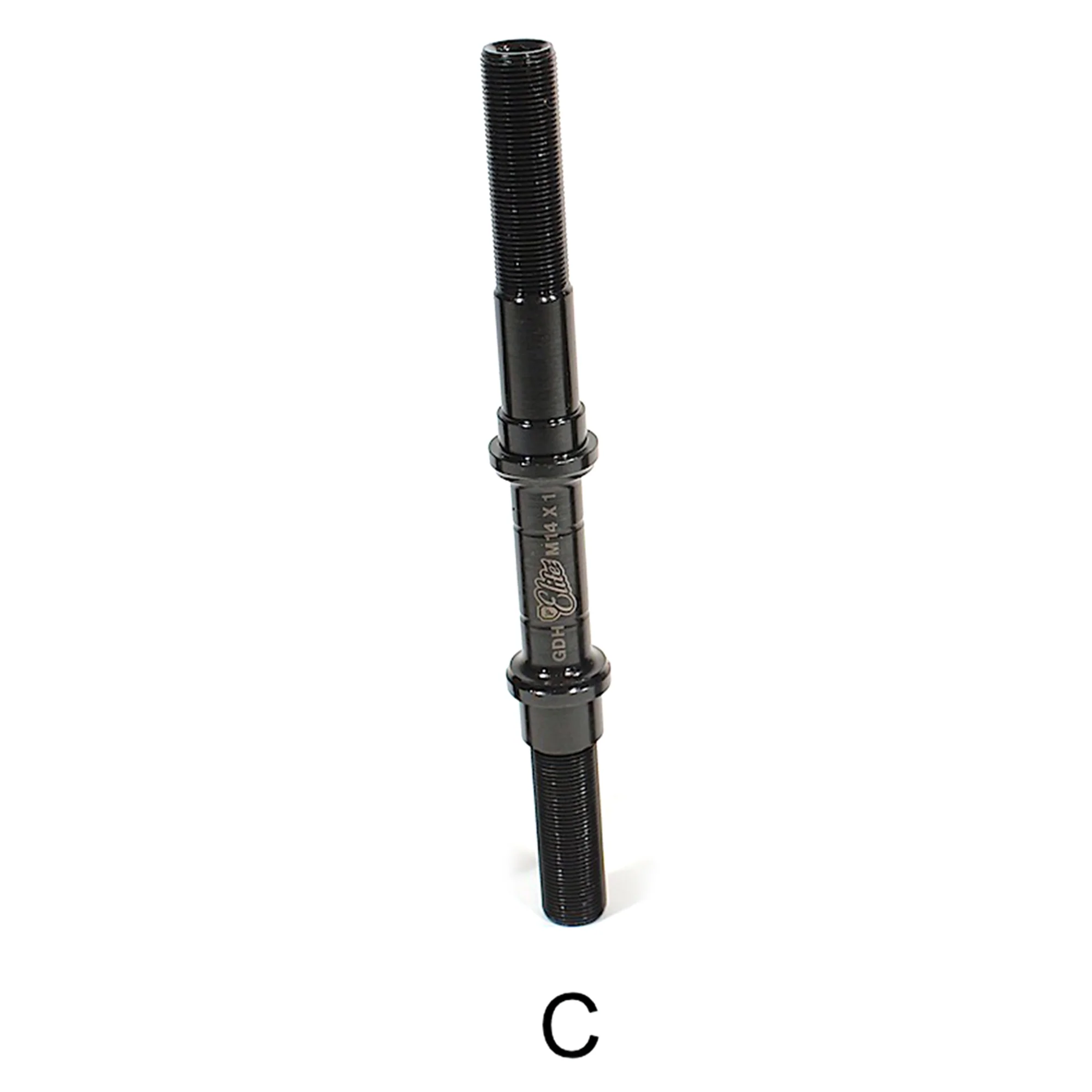

C. 14mm GDH Elite Cassette Axle(fits Profile Elite cassette hubs)

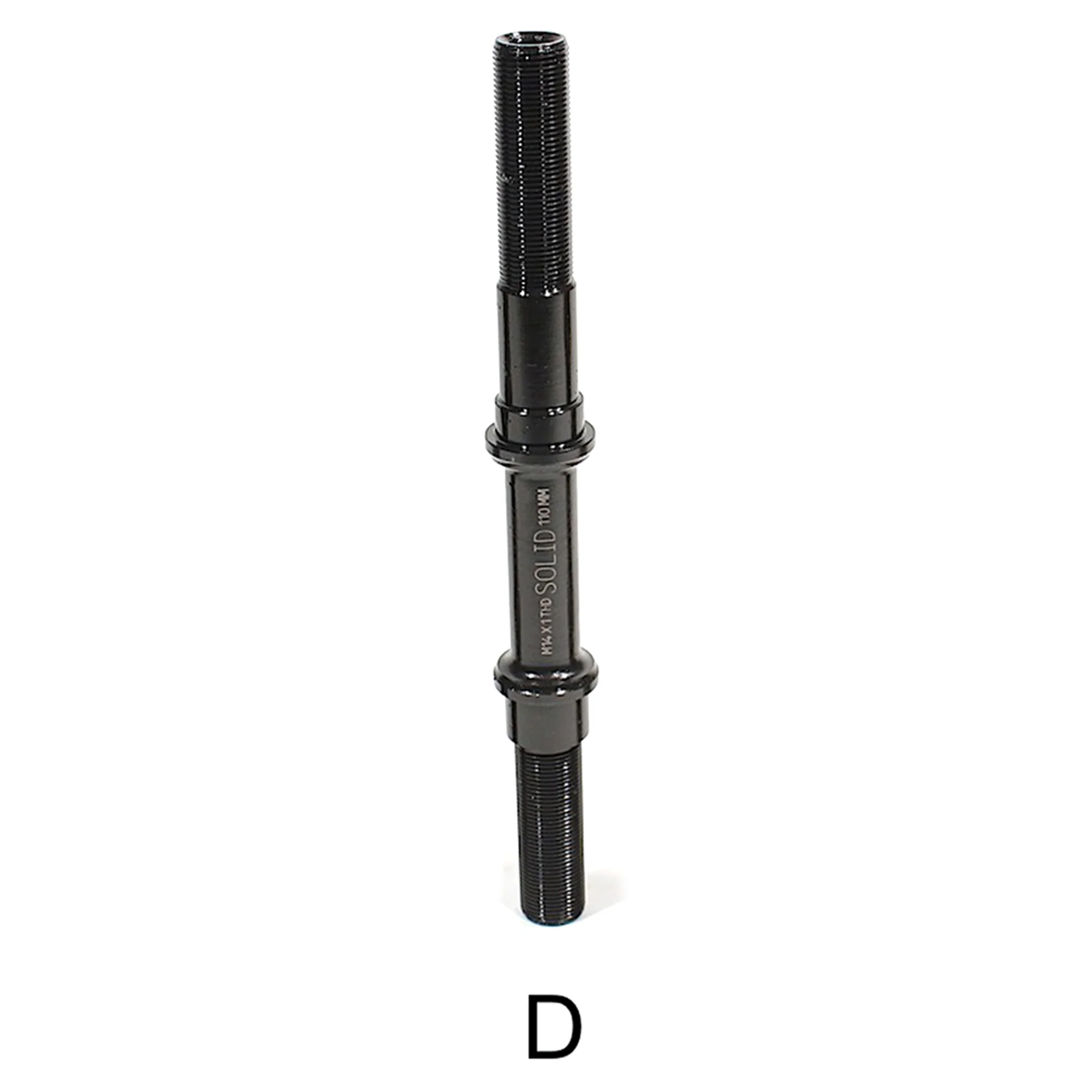

D. 14mm Solid Mini Cassette Axle(fits Profile Mini, Totem, High Flange, & Madera cassette hubs)

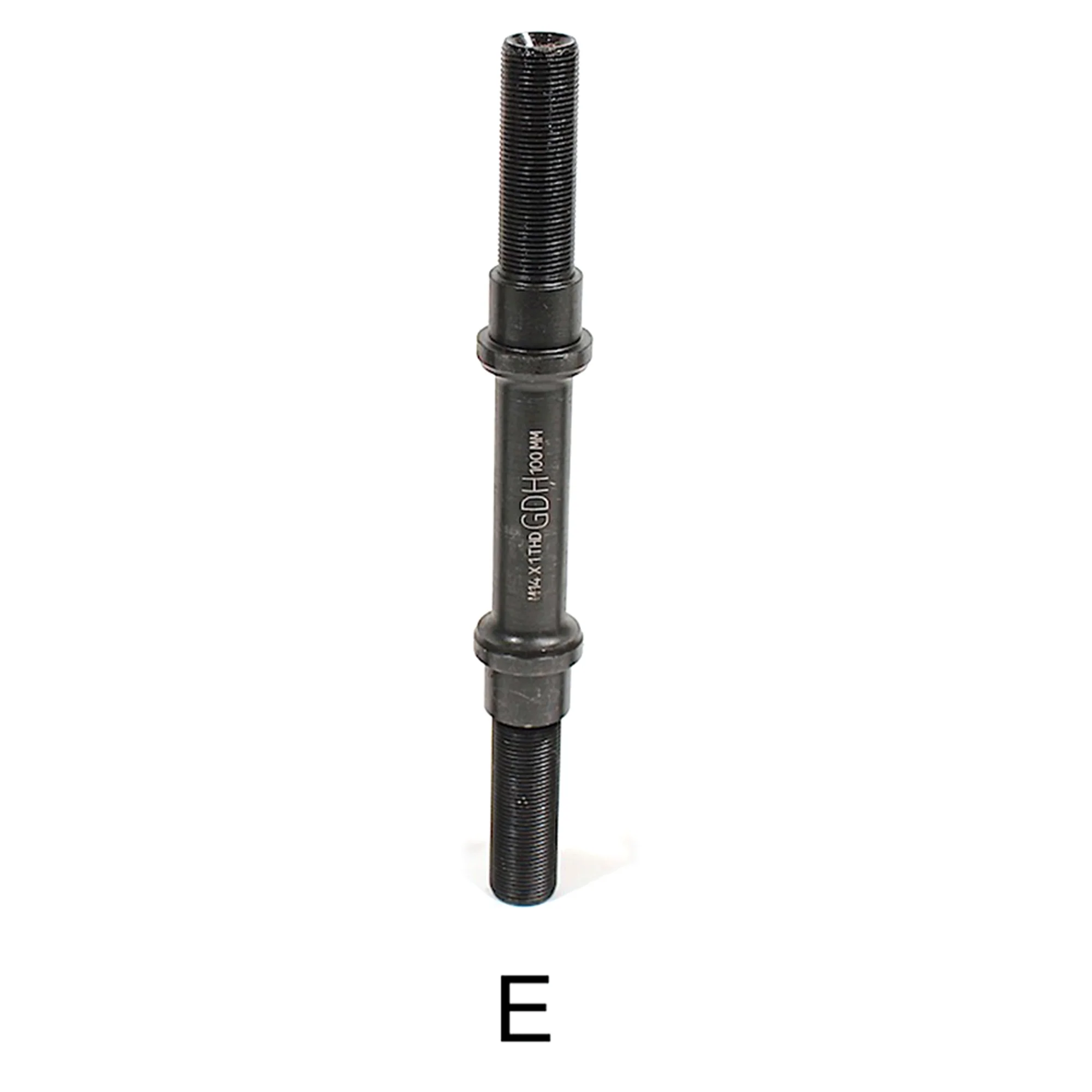

E. 14mm GDH Mini Front Axle(fits Profile Mini, Elite, & Madera front hubs)

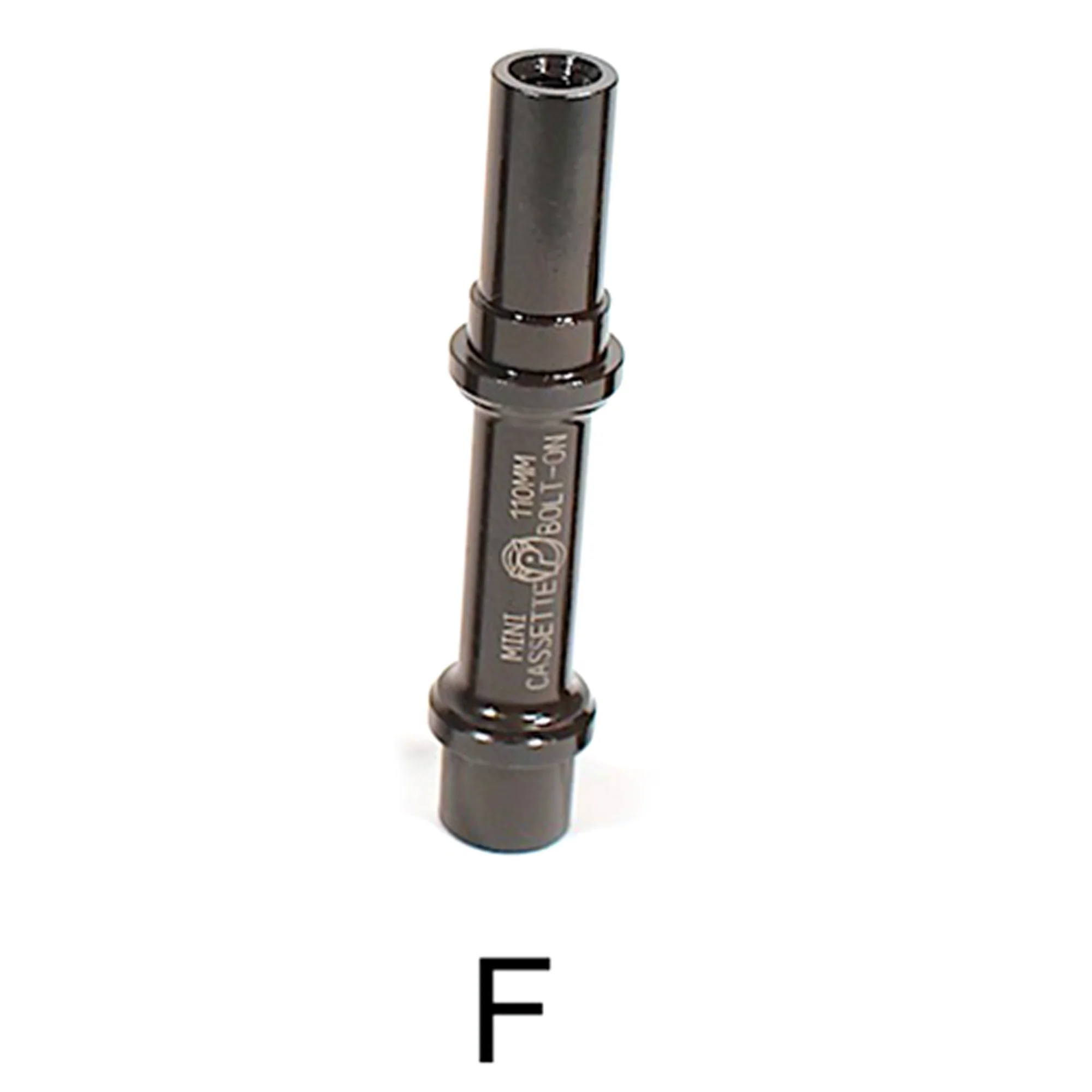

F. 3/8″ Threaded Mini Cassette Axle(fits Profile Mini, Totem, High Flange, & Madera cassette hubs)

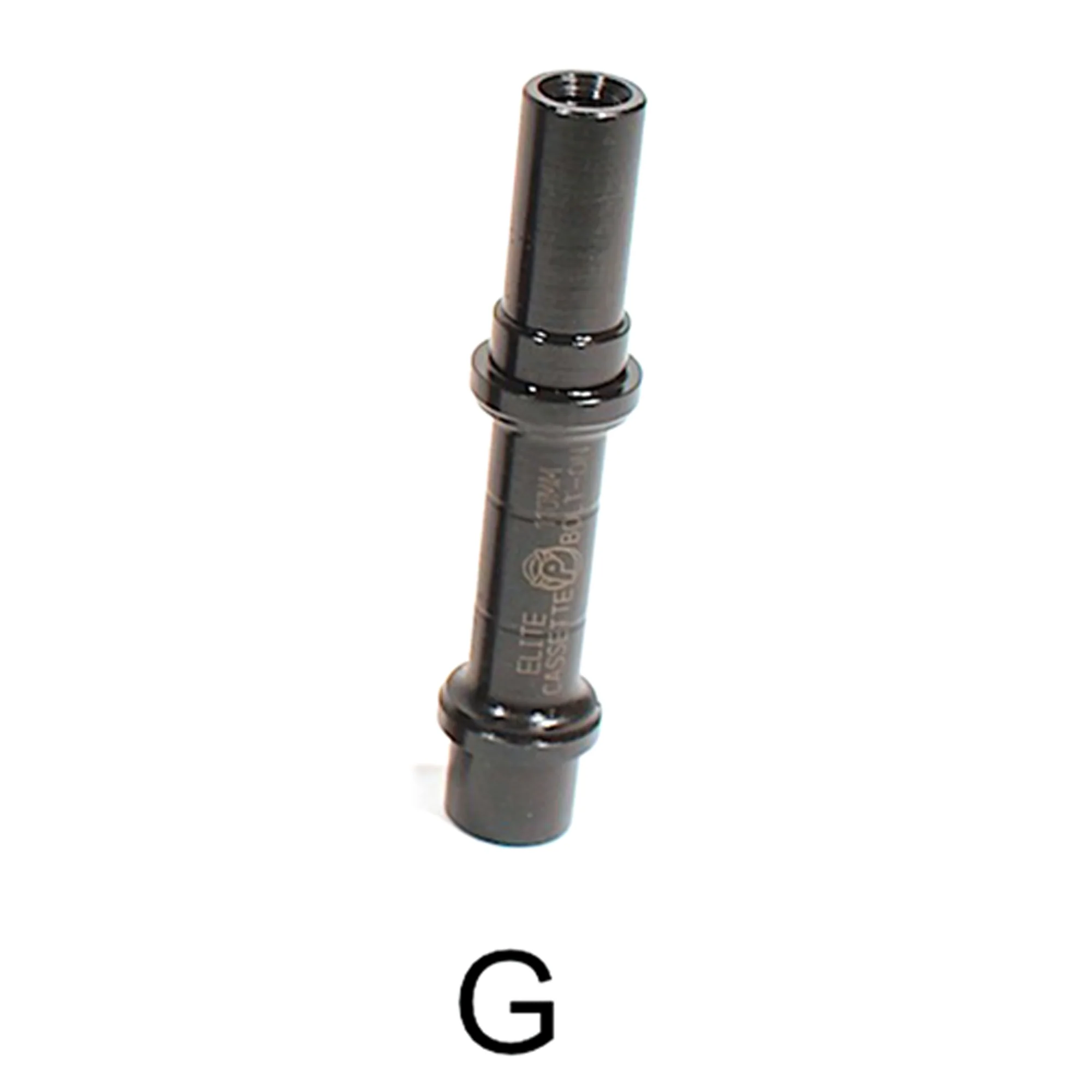

G. 3/8″ Threaded Elite Cassette Axle(fits Profile Elite cassette hubs only)

*14mm axles include cone spacers and two jam nuts*

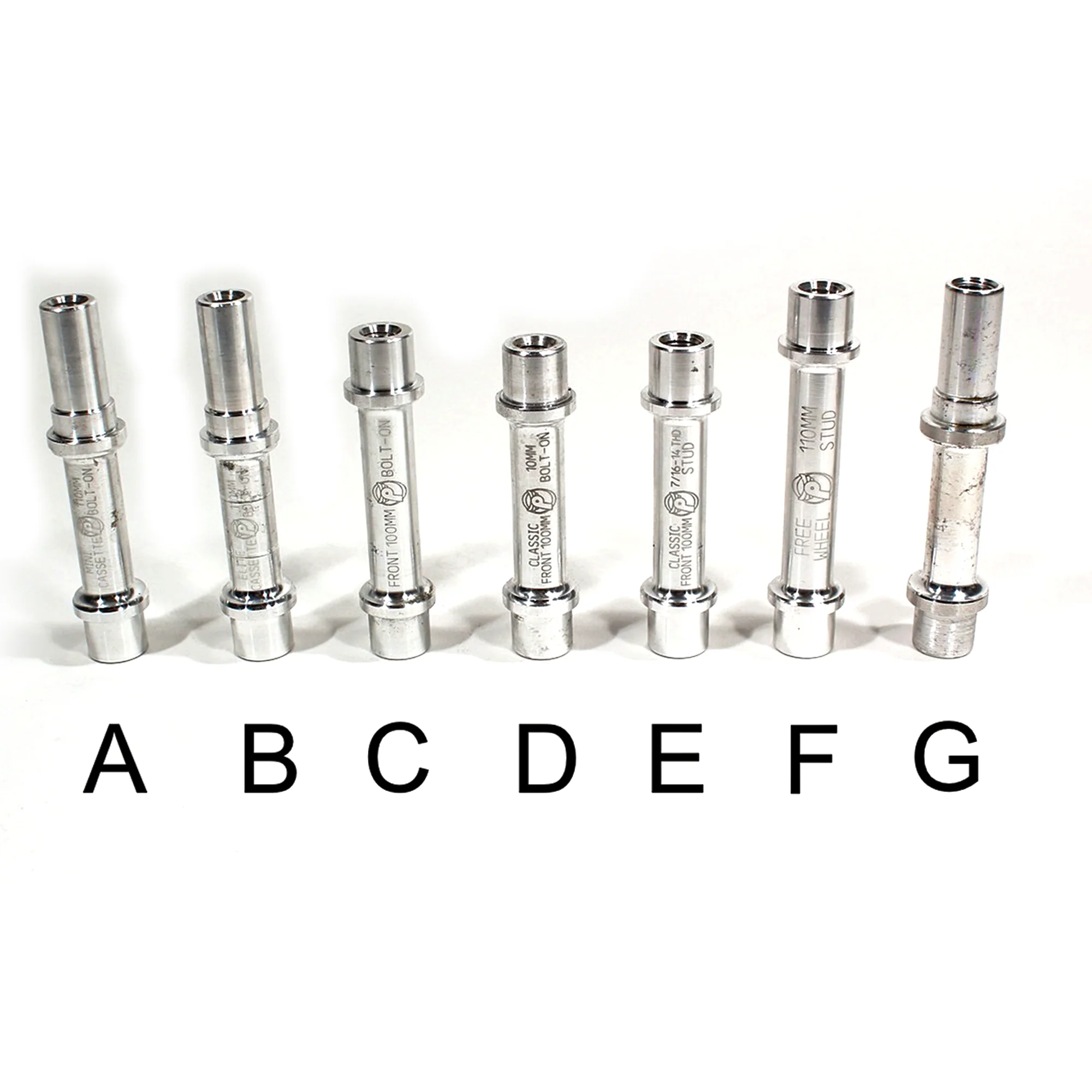

Aluminum axle types:

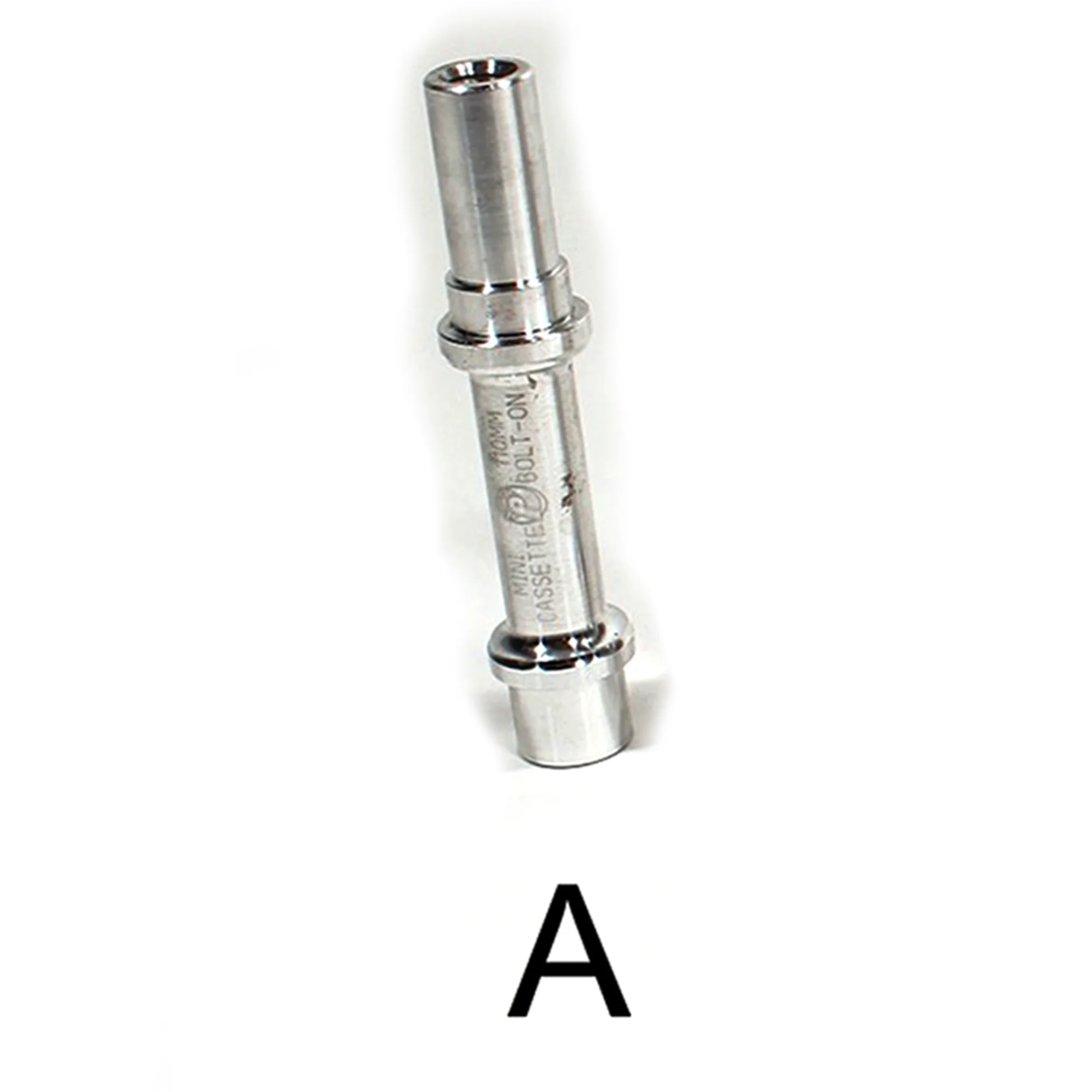

A. Mini Cassette 3/8″ Threaded Axle(fits Profile Mini, Totem, High Flange, & Madera cassette hubs)

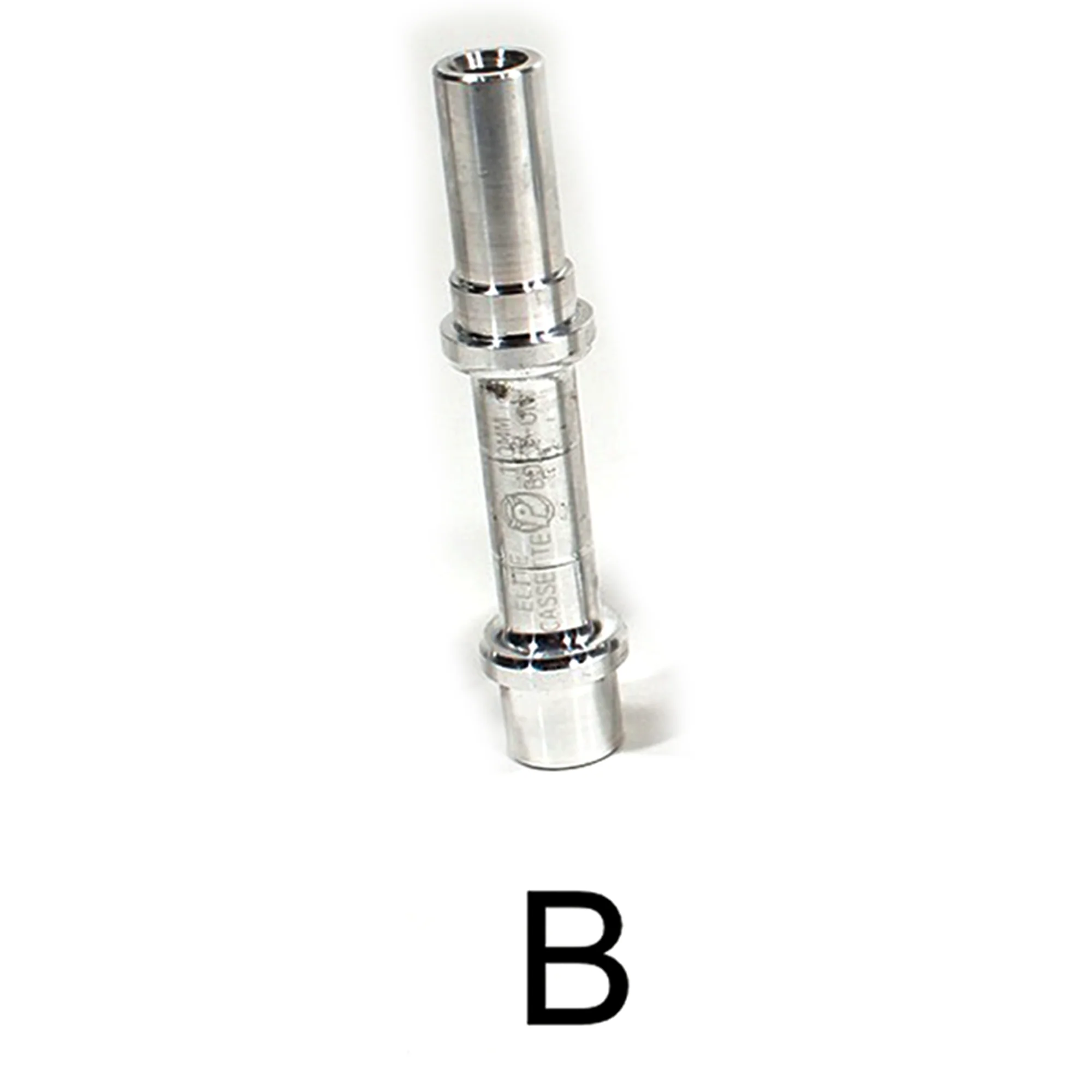

B. Elite Cassette 3/8″ Threaded Axle(fits Profile Elite cassette hubs)

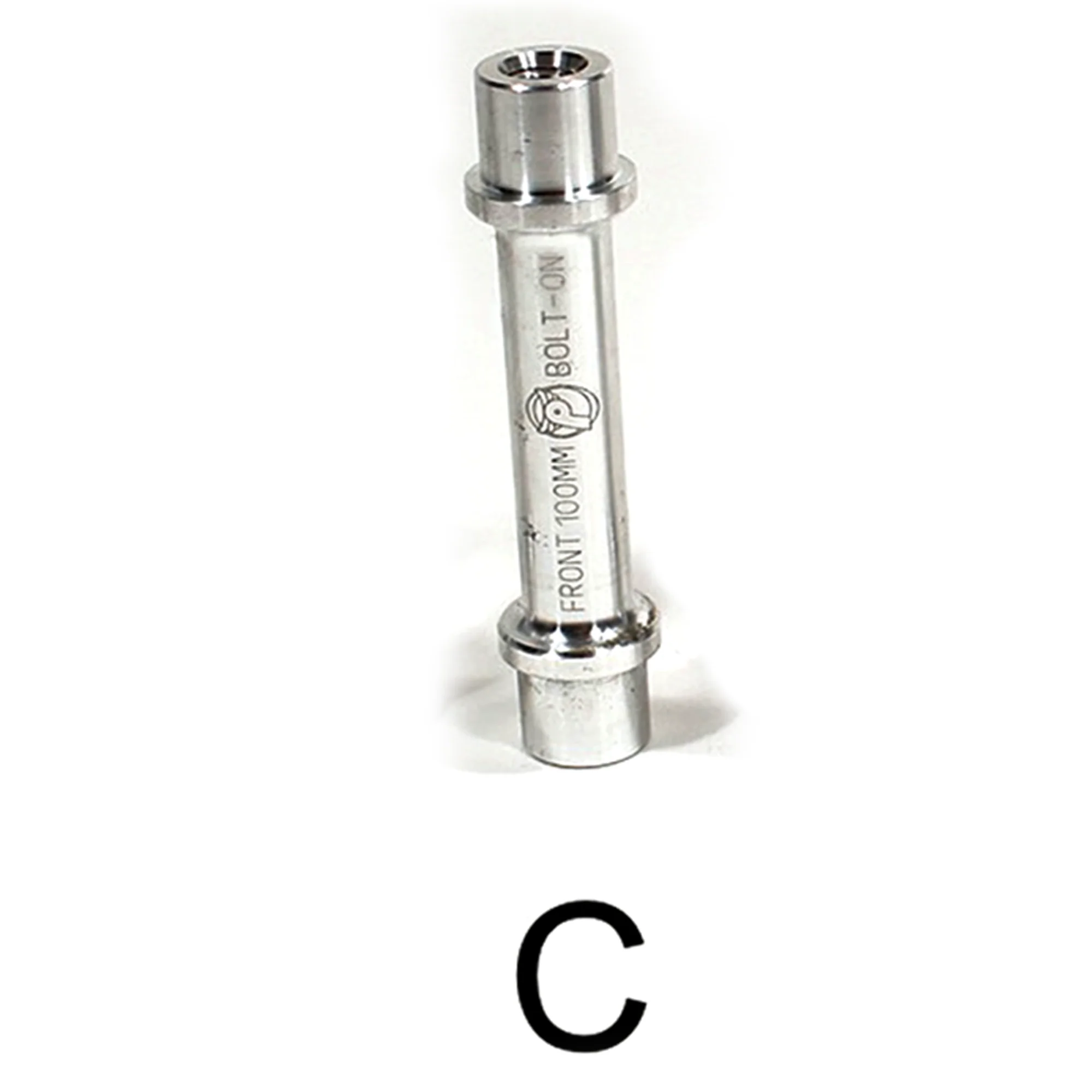

C. Mini/Elite Front 3/8″ Threaded Axle(fits Profile Mini, Totem, Elite, & Madera front hubs)
D. High Flange Front 3/8″ Threaded Axle(fits Profile High Flange front hubs)

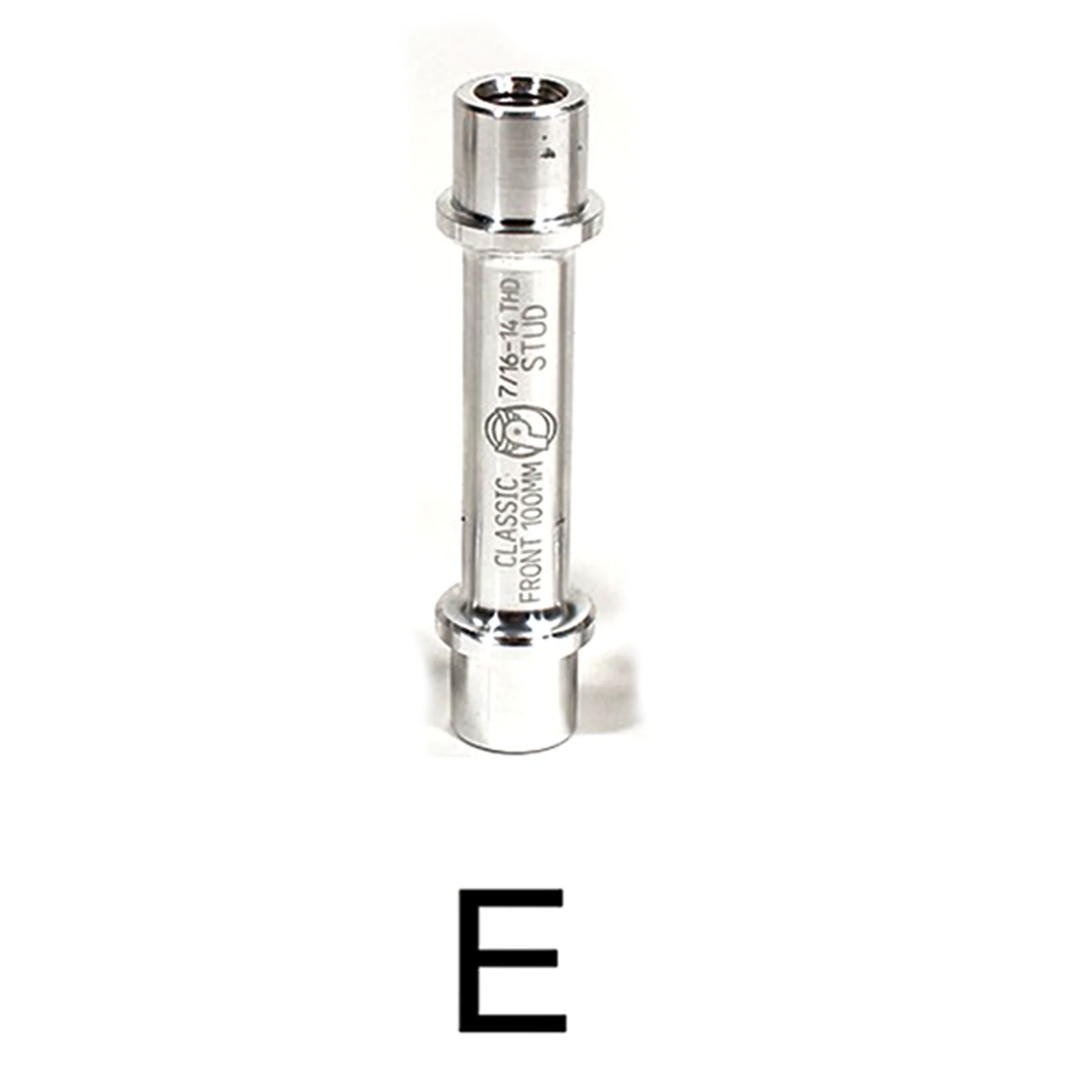

E. High Flange Front “Stud” Axle(fits Profile High Flange front hubs-uses Axle Studs)

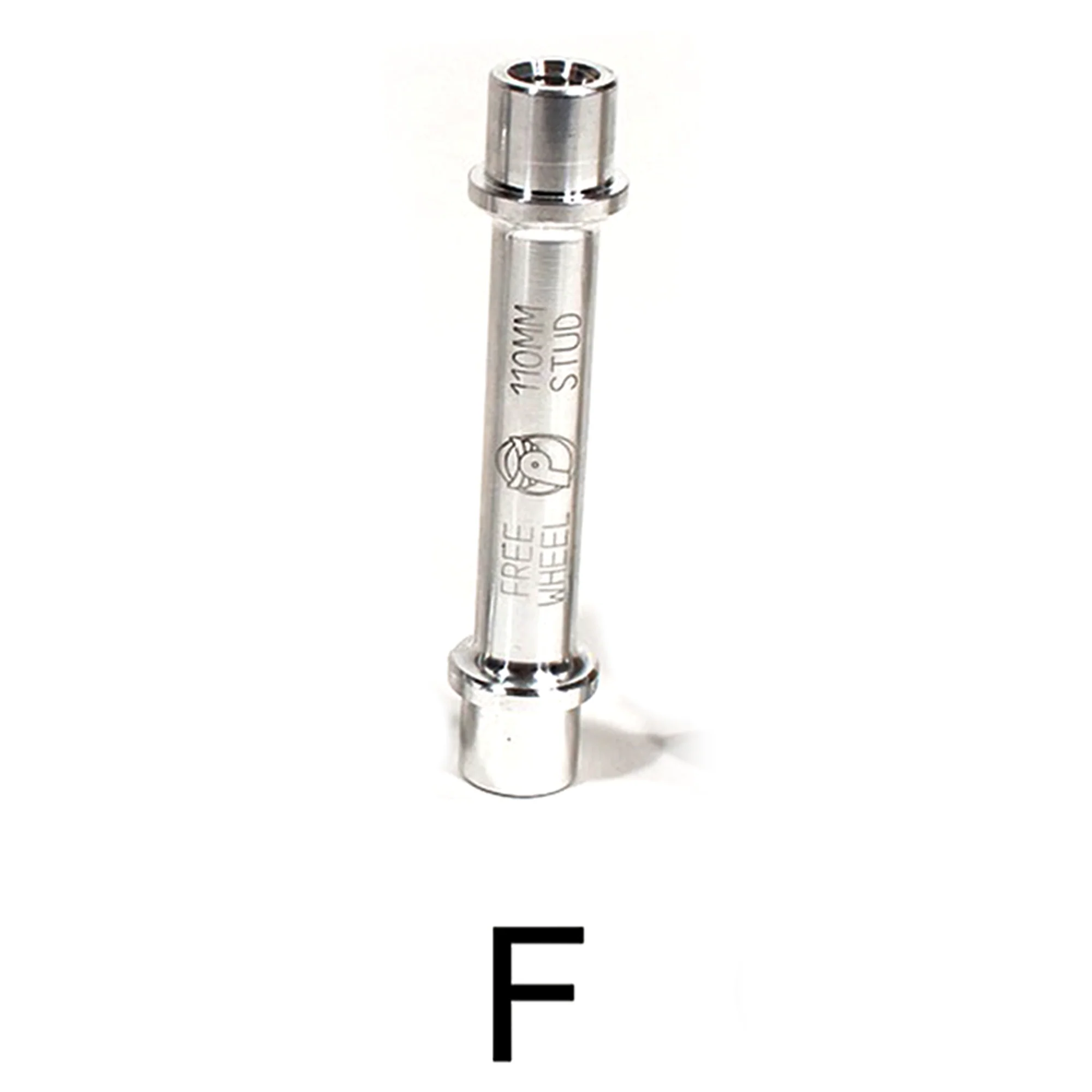

F. Freewheel “Stud” Axle(fits Profile High Flange Freewheel & Drive-Bi hubs)

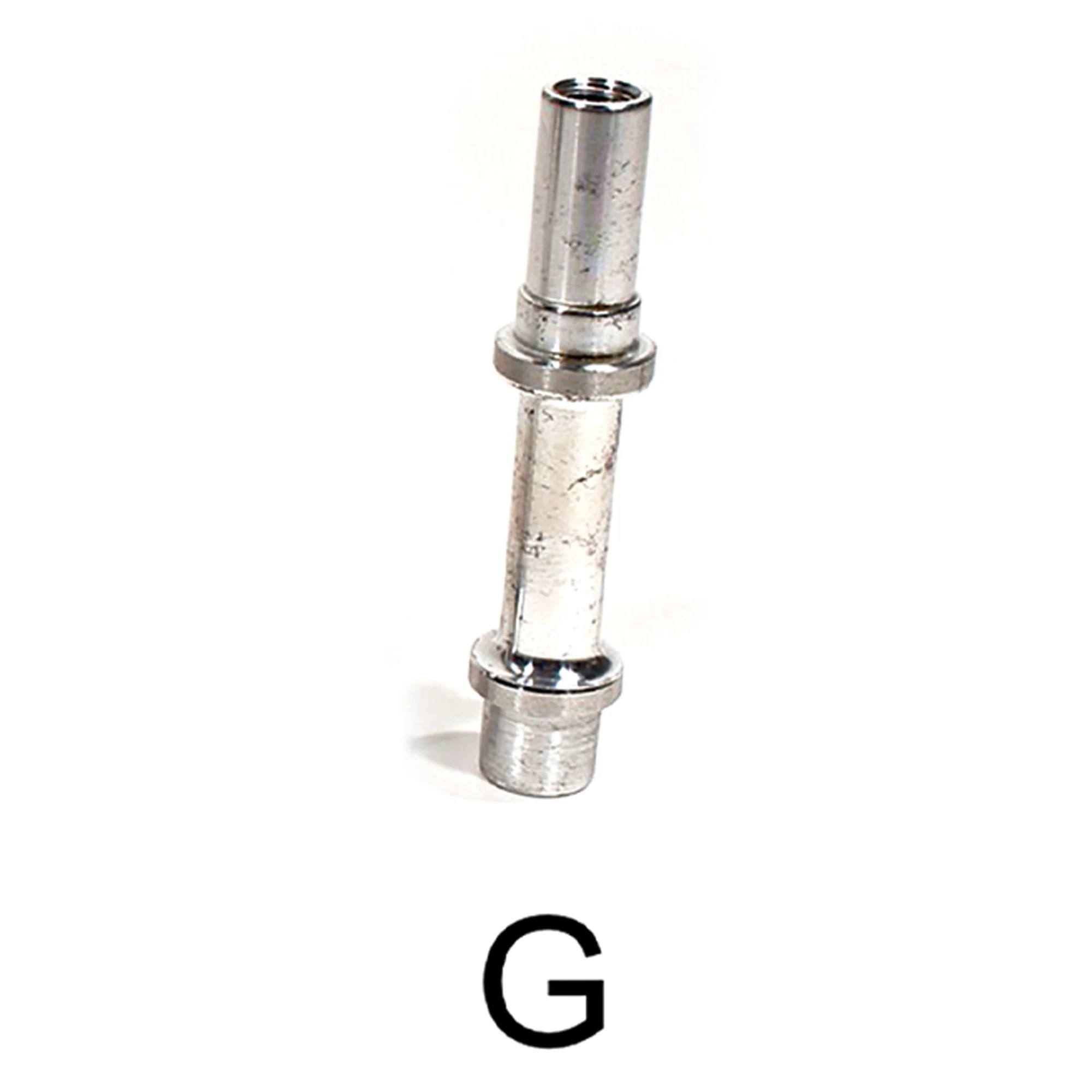

G. Mini Cassette “Stud” Axle(fits Profile Mini, Totem, High Flange, & Madera cassette hubs) (Includes drive side spacer)
H. Elite Bmx Disk 3/8 Threaded Axle

*”Stud” style axles have 7/16-14 threads and require Profile chromoly studs*
